Leitner Arden Electric Mobility Scooter Features
Packed with features Leitner Arden mobility scooter will help you reach your destination in comfort
- Two batteries (24V 12Ah) range of up to 20 km
- Convenient dual voltage charger can charge the battery pack on-board or off-board
- Dimensions: 102cm long x 54cm wide x 84cm high
- Weight ~ 42kg, battery weight ~9kg

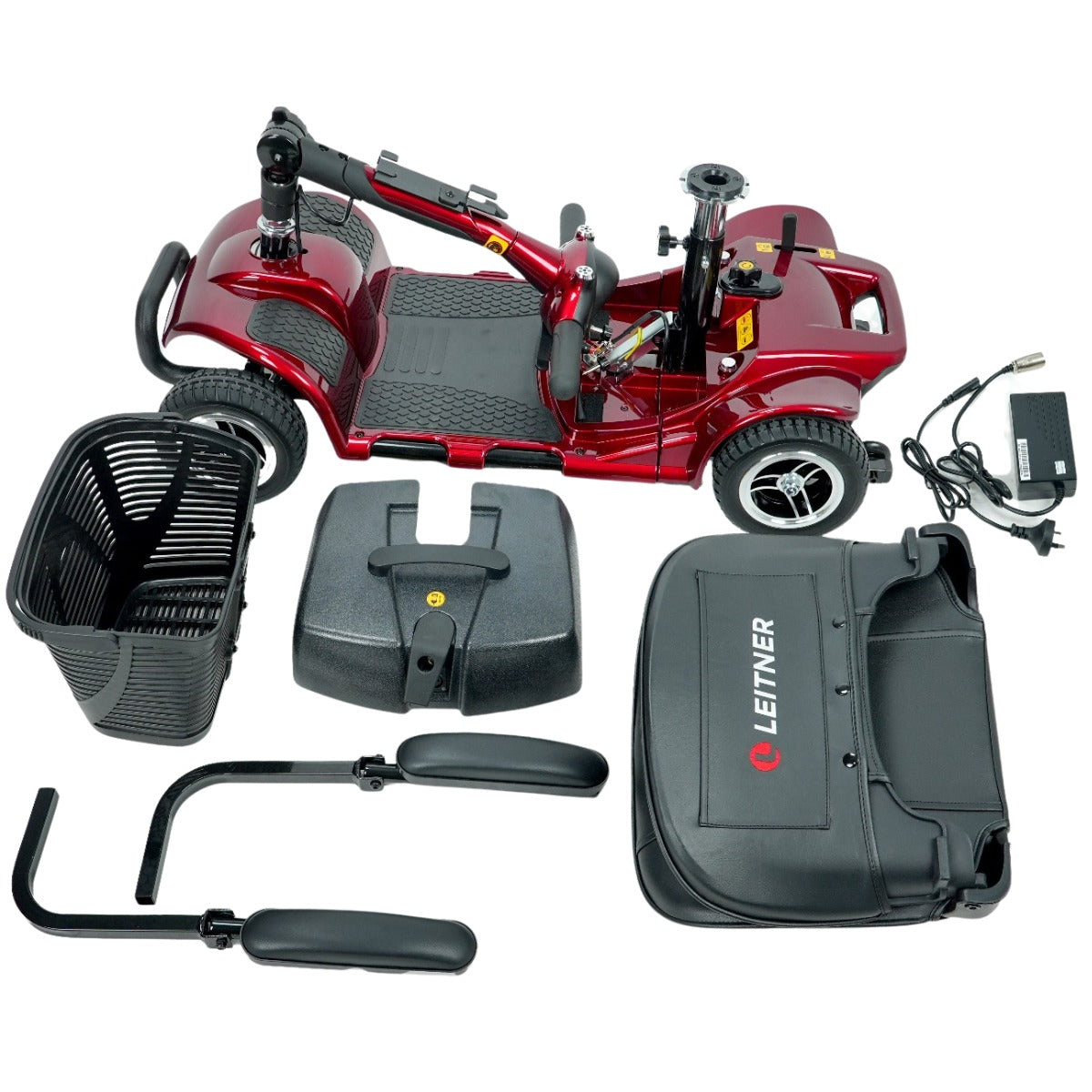

- Feather-touch disassembly permits simple frame separation with only one hand and easily disassembles into six lightweight pieces for convenient transport and storage
- The front frame-mounted seat post offers maximum stability.
- The ergonomic comfort foldable seat provides a business-class seating experience.
- Travel up to 20km (on the flat even surface), Maximum speed is 6km/h
- Maximum weight capacity: 120kg
- Minimum turning radius ≤140cm ± 30cm
- Braking distance (on a level surface) ≤1500mm
- Motor is 24V/180W
- Width-adjustable flip-up armrests ensure a cosy and customizable ride
- The adjustable angle of the tiller and a front storage basket add to its user-friendly design, providing convenience on the go
- 7.5-inch modern alloy wheels for practical use
Dimension
Specifications:
- Motor - One powerful motors, 24V 180W
- Frame - Steel
- Battery - Two of 12Ah 24V Lead Acid/Gel-Cell battery. A single battery has 144Wh, and both batteries combined have 288Wh which makes the batteries compatible for transport with most airlines.
- Brakes
-
- Intelligent electromagnetic brakes: when the throttle control lever is released, the automatic electromagnetic brake engages smoothly, bringing the scooter to a controlled stop without the need for manual braking.
- The braking distance should be smaller than 1.5m (on the flat paved surface)

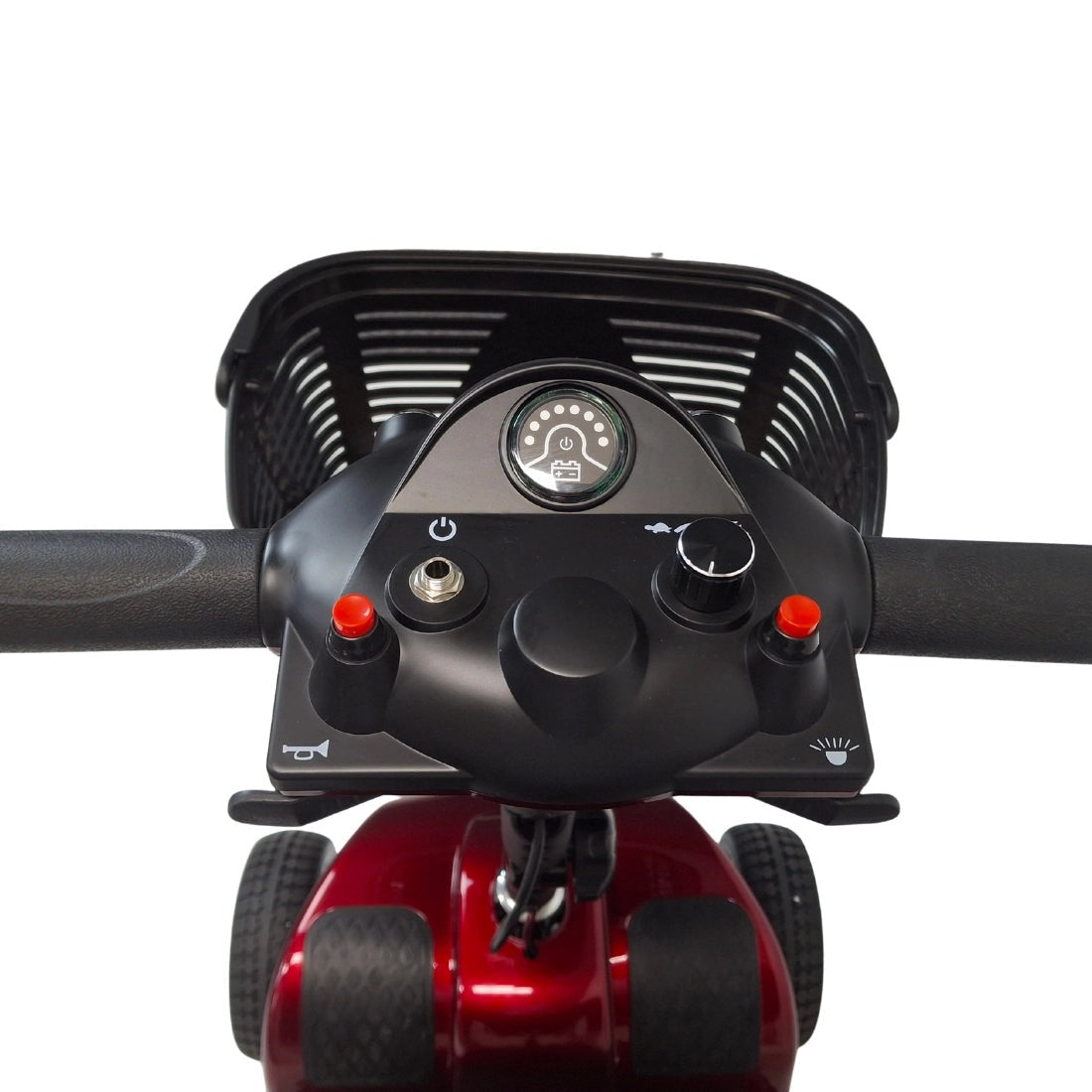

- Tiller Control - The tiller console has all the controls needed to drive Leitner Arden, including the key switch, throttle control lever, horn button, speed adjustment button, front light button, and the battery indicator.
- Turning Radius - ≤140cm ±30cm
- Dimension
-
- Overall Size: 102cm long x 54cm wide x 84cm high
- Height of seat approx 52cm, seat width approx 40cm, seat depth approx 35cm
- Height of backrest approx 33cm
- Height of armrest approx 21cm
- Seat Post - The front frame-mounted seat post enhances overall stability and features an adjustable design, allowing it to be customized to match the seat height for optimal comfort and support.
- Armrest - They are adjustable in the width between the armrests.
- Travelling Distance on one Charge - up to 20km depending on hills and weight of occupant
- Front and Rear Wheels - 7.5-inch modern alloy wheels for practical use, inflate-free tires
- Freewheel/Manual Mode - Leitner Arden has freewheel levers located at top of rear section of the scooter, enabling the user to disable the drive system in order to maneuver the scooter manually.
- Storage - Front basket
- Anti-Tip Wheels - The anti-tip Wheels enhance the safety feature of the scooter. They are bolted to the frame at the rear section of the scooter.
- Seat Rotation Lever - The seat rotation lever is a user-friendly mechanism located beneath the seating surface, designed to facilitate smooth and secure adjustment of the seat’s orientation. Disengage the seat rotation lever and rotate the direction of seat.
- Front Protector Bar - Front protector bar mounted to serve as a defensive barrier against bumps, scrapes, and minor collisions, shielding the front wheels and structural frame from potential damage.
- Mudguards - Both front and rear wheels have the mugard panels.
- Weight - 33kg without batteries, 42kg with batteries. Batteries removal are quick and easy.
- Carry Capacity - Maximum load to 140 kg. This includes the occupant and luggage.
- Charger - Fully charge your new battery about 10 to 12 hours before its first use. This brings the battery up to about 90% of its peak performance level. After each use, charge the battery for 8-14 hours. The battery will gradually climb to its peak performance, until after 4 or 5 charges, when the battery will top up to 100% of its peak performance and also extend its lifespan.
