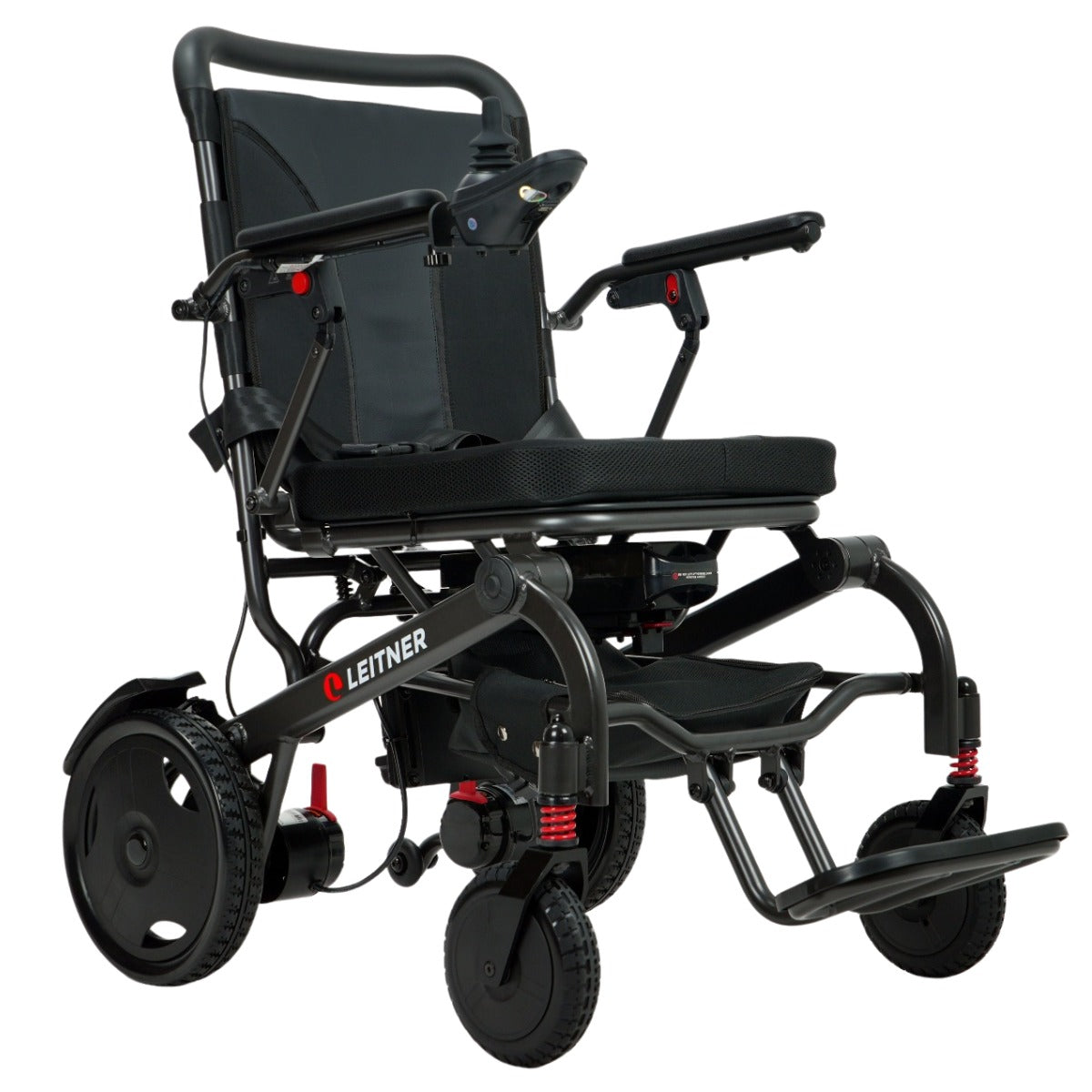

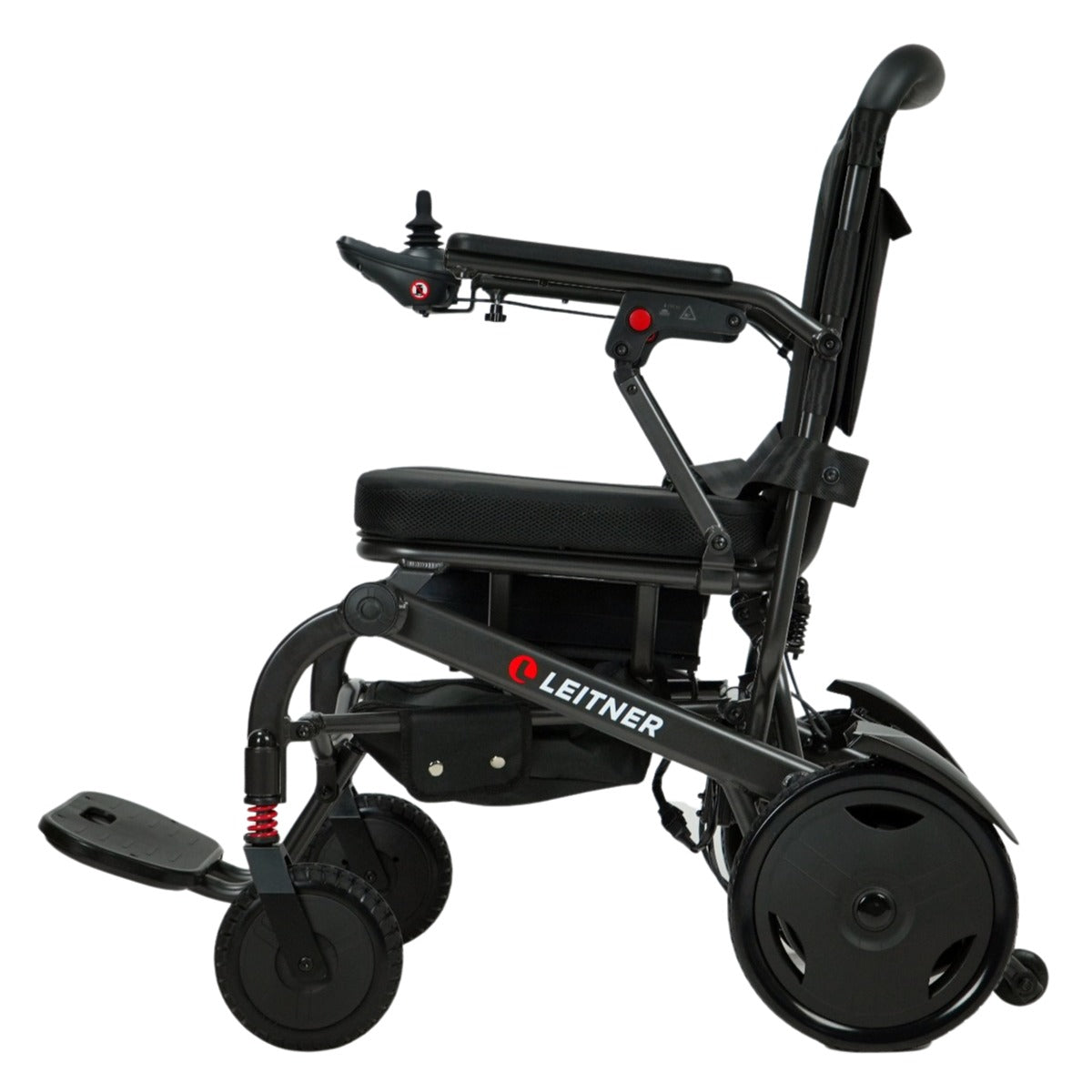

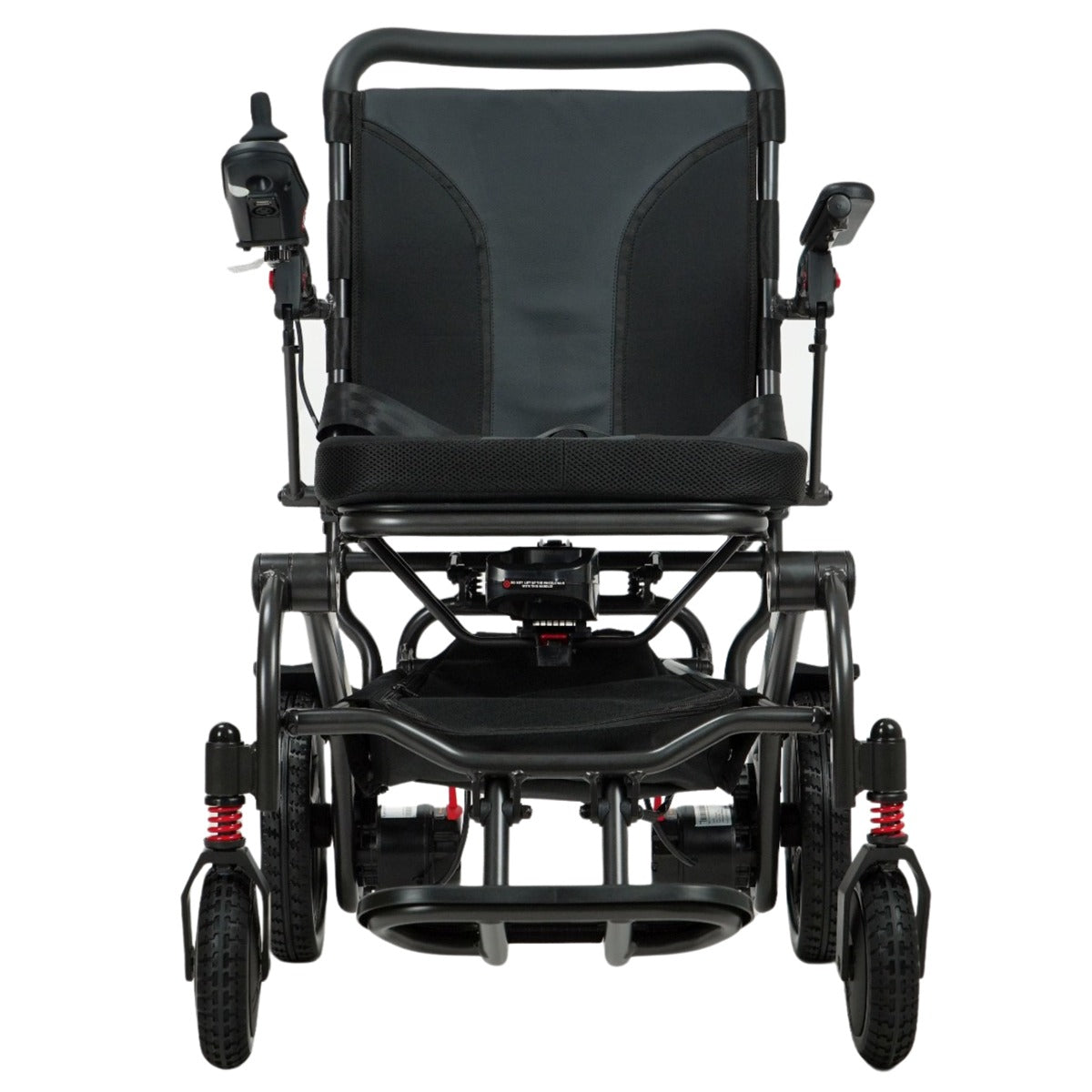

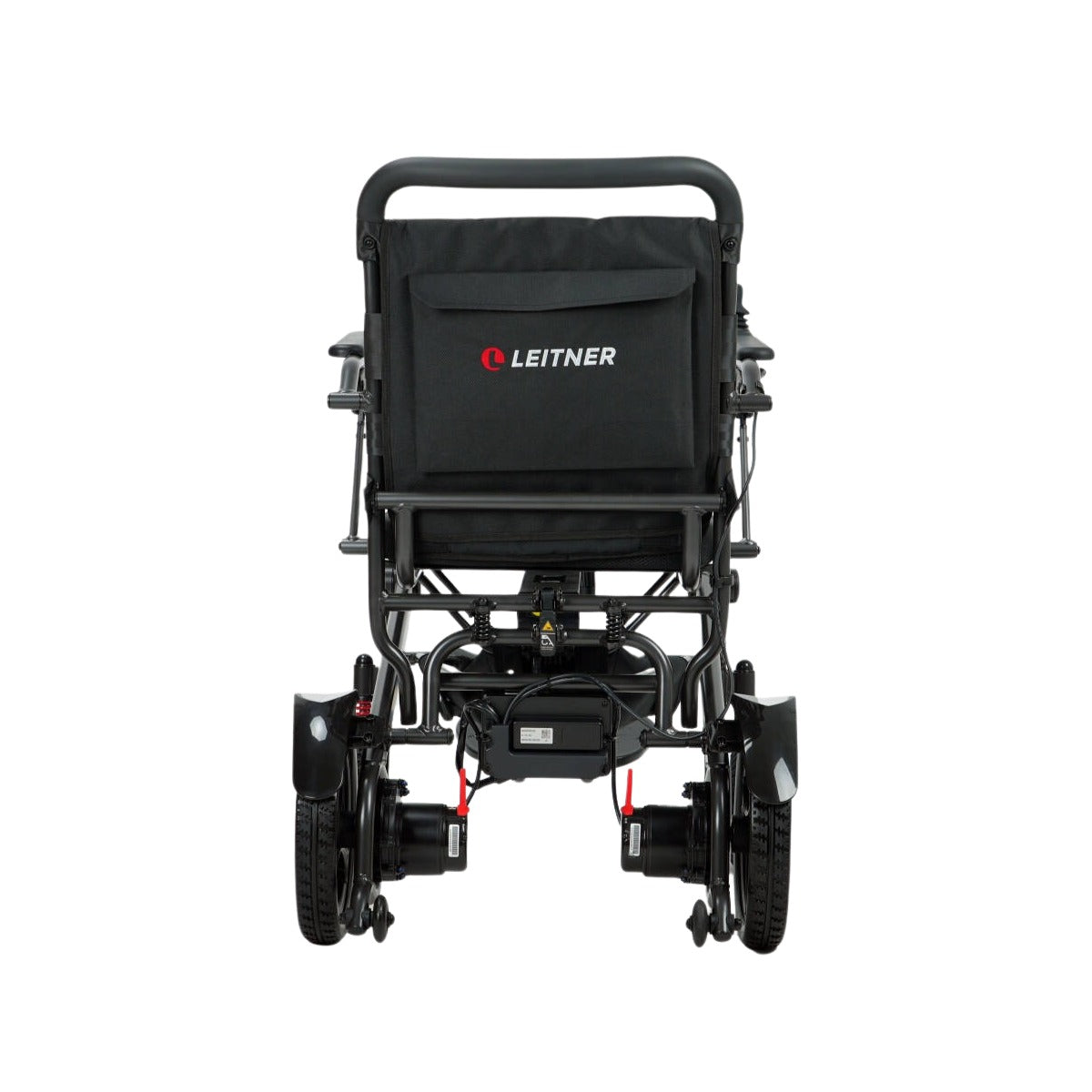

Lightweight, durable, and built for comfort, the Leitner Hayden features a robust aluminium frame and a net weight of just 21 kg, making it easy to transport and manoeuvre. The ergonomic, cushioned seat ensures lasting comfort for daily use, whether indoors or outdoors. Equipped with a shock-absorbing backrest, the power wheelchair provides added stability. Ideal for users seeking a reliable and travel-friendly mobility solution without compromising on support or performance.
Leitner Hayden Electric Wheelchair Features:
Packed with features this Light-weight Electric Folding Wheelchair will help you reach your destination in comfort and style.
- Folded in 7 seconds to fit into most cars (75cm high x 41cm wide x 77.5 cm deep)
- Dimensions: 95cm high x 62.5cm wide x 93cm deep
- Front suspension at front wheels
- Backrest has a shock-absorbing feature for superior comfort in rough or uneven terrain
- weighs ~21kg without batteries, ~22.4kg with batteries
- 47cm of space between the armrests with an ergonomically shaped seat cushion
- Batteries can be removed in seconds
- suitable for most airlines (please confirm with airline and airports before booking flight)
- travels up to 20km
- maximum weight capacity: 120kg
- Five different speed settings, starting from the smooth, comfortable lowest speed setting.
- Removable joystick for transporting with built-in USB charger
- Minimum turning radius of about 90cm
- both armrests can be flipped up
- solid PU wheels, 10.65 inch diameter (rear), 6.5 inch diameter (front) with inflation-free tyres
- Braking distance (on a level surface) ≤ 1000mm
- for use on even, paved surfaces
- easy to assemble: 5 minutes, no tools required: insert joystick, attach the seat cushion , done!
Dimension:
Technical Specifications:
-
- Fully charge the new battery (6Ah, 24V) before its initial use. This brings the battery up to about 90% of its peak performance level.
- Give the battery another full charge of 4-6 hours and operate your wheelchair again, the batteries will now perform at over 90% of their potential.
- After four or five charging cycles, the batteries will top off at 100% charge, it lasts for an extended period.
- Certified safe for air transport under UN 38.3. Please confirm with the airline and airports first, as some airlines may have different guidelines.
-
- The brakes can be released using two safety releases on the rear, which can be operated from behind by hand if the wheelchair occupant reaches back.
- After the brakes have been released, the wheelchair can be pushed from behind, or it can be rolled on the rear wheels when folded. If the wheelchair is occupied, it is recommended to use power assistance (joystick control) to ensure safe operation. Pushing the electric wheelchair from behind is possible, however it is a bit harder compared to pushing a non-motorized wheelchair.
-
- The further you push the joystick from central position, the faster the wheelchair moves. Whenever you release the joystick lever, it will automatically return to center, and brake will be automatically engaged to stop the ewheelchair.

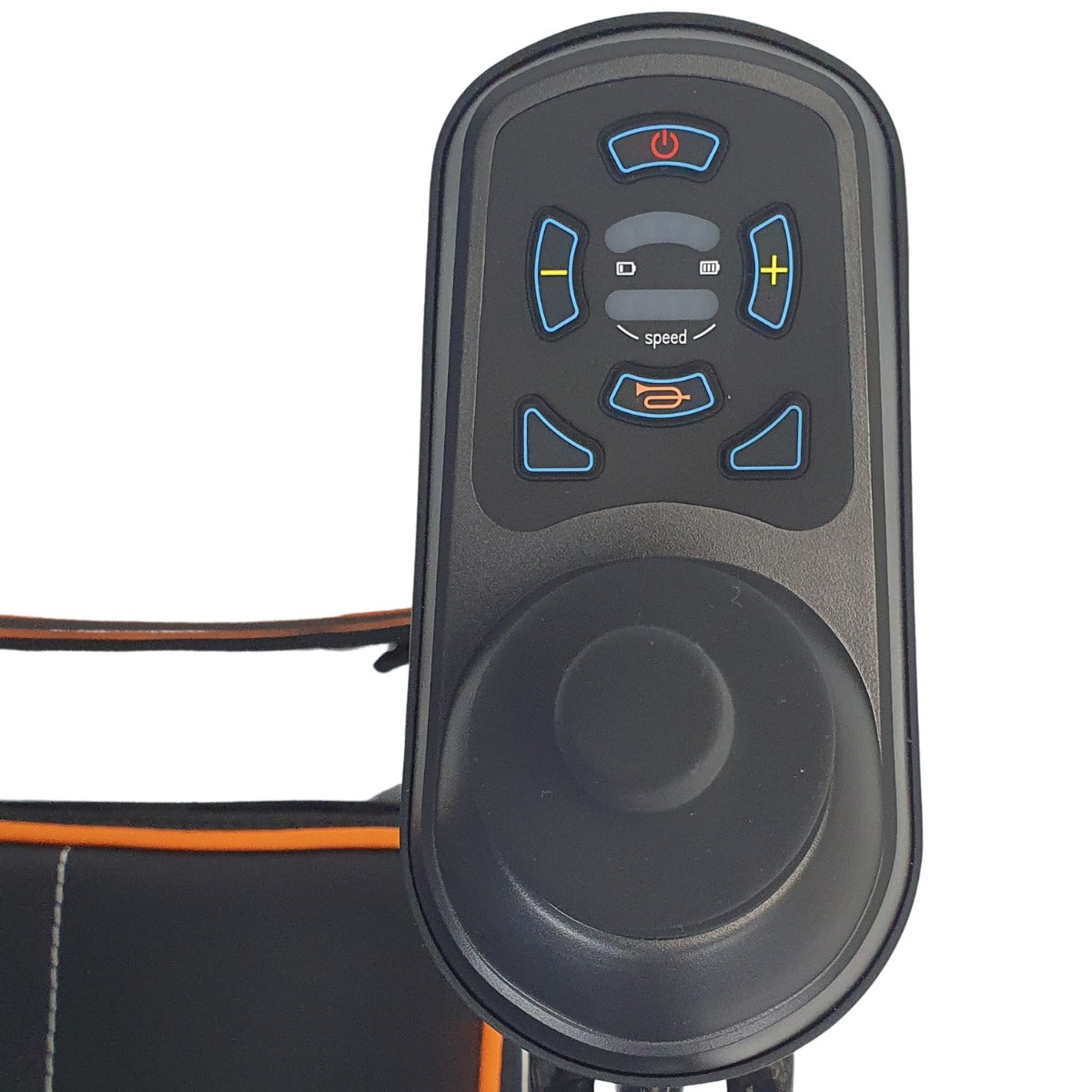

- Plus(+) and Minus (-) buttton to adjust 5-speed, starting from steady slowest motion to the speed you feel comfortable to ride. Leitner recommends you start at our lowest speed until you can ride ewheelchair skillfully.
- Reversing sound can be closed by pressing the button of speed-down (-) and horn simultaneously for 3 seconds. If the user needs to turn it on, please press (+) and horn for 3 seconds.
-
- Fully assembled: 95cm high x 62.5cm wide x 93cm deep.
- Folded: 77cm high x 41cm wide x 62.5 cm deep with joystick.
- Distance from top of seat cushion to floor: 52cm, without cushion: 45cm.
- Height difference from the top of the seat cushion to the footrest is about 43cm.
- Height of backrest approx. 46cm from the top of the seat cushion to the top of the backrest.
- Distance from footstep to ground: 9cm.
- Padded armrests 26.5cm long, 5cm wide.
-
- Turn the footrest upward by 90 degrees

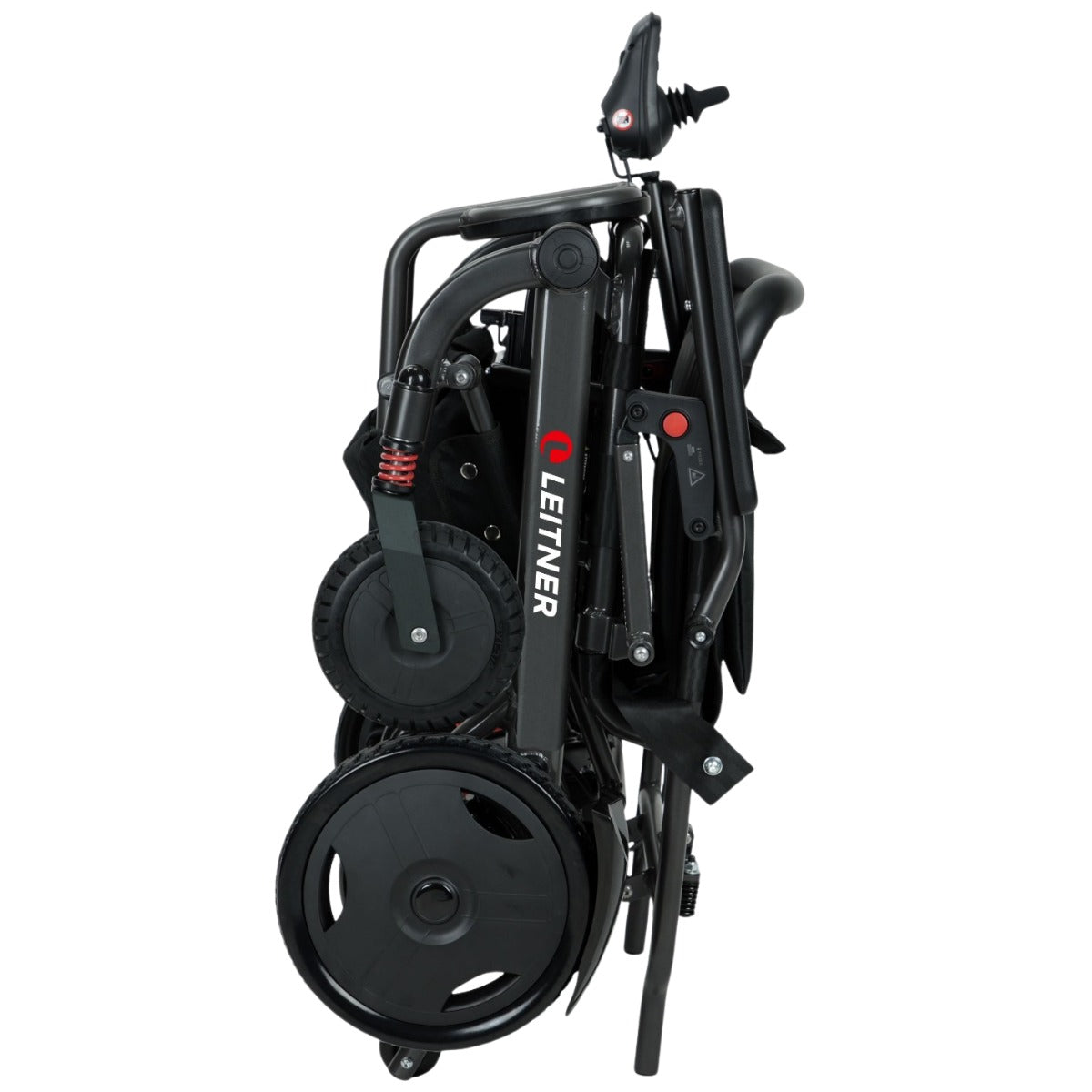

- Push the seat upwards from the center while gently folding the backrest forward until the frame collapses into a compact, portable position.
-
- Ergonomic Seat cushion 43cm deep, 43cm wide, 46cm seat high.
- Seat cushion is removable. The cover of seat cushion and backrest are removable and washable.
- Backrest height and width are 46cm and 40cm. Backrest has a shock-absorbing feature.
- Maximum Speed - Walking speed about 6km/h
- Weight - 21kg without batteries, 22.4kg with batteries. Battery removal quick and easy.
- Frame - Light-weight Aluminum-alloy
- Mudgurads - Two rear PVC mudguards
- Carry Capacity - Maximum payload of 120 kg. This includes occupant and luggage
- Charger - This is a smart charger that automatically stops charging when the battery is full. Connect the charger to the port beneath the joystick, then plug it into a power outlet.
-
- A full charge takes approximately 4-6 hours if the battery is completely drained.
- The first charge may take longer as the battery cells balance.
- A partially discharged battery will charge faster.
- If charging exceeds 8 hours without reaching full, stop charging and contact customer support.
- The battery brings 90% of its peak performance level after the first charge.
- The battery will top off at 100% charge after four or five charging cycles.
