Leitner Charlie | Light-Weight Folding Electric Wheelchair


Regular price $2,999.00
/
Tax included.
Frame Color
Only 10 items in stock!

30 Day Return Policy

Best Price Guarantee

Free Shipping
*Conditions Apply


Have you seen a better price online ?

In order for us to price match, Message us here

Leitner Charlie | Light-Weight Folding Electric Wheelchair
Leitner Charlie | Light-Weight Folding Electric Wheelchair
Leitner Charlie | Light-Weight Folding Electric Wheelchair
Leitner Charlie | Light-Weight Folding Electric Wheelchair
Leitner Charlie | Light-Weight Folding Electric Wheelchair


Built from premium magnesium alloy, the Leitner Charlie redefines lightweight mobility. Tipping the scales at just 17 kg (without the battery), it’s the lightest in its class — making lifting, steering, and transport a breeze. Designed for everyday versatility, Charlie glides effortlessly through indoor spaces and handles select outdoor terrain with ease. With generous ground clearance, a roomy seat, smooth joystick control, and a clever drawer-style battery tucked neatly under the seat, it delivers comfort and convenience in equal measure.

Leitner Riley Electric Wheelchair Features:

Packed with features this Light-weight Electric Folding Wheelchair will help you reach your destination in comfort and style.

  • Folded in seconds to fit into most cars (79cm high x 36cm wide x 60 cm deep)
  • Dimensions: 94cm high x 60cm wide x 103cm deep
  • Weighs ~17.4kg without batteries, ~19.5kg with batteries
  • One battery can be easily removed in seconds
  • Front suspension at the front wheels
  • Suitable for most airlines (please confirm with the airline and airports before booking a flight)
  • Travels up to 16 km, Maximum speed is 6km/h
  • Maximum weight capacity: 120kg
  • Five different speed settings, starting from the smooth, comfortable lowest speed setting
  • Minimum turning radius ≤ 1200mm
  • Braking distance (on a level surface) ≤ 1000mm
  • Both armrests can be flipped up
  • Two motor is 24V 150W *2
  • For use on even, paved surfaces
  • Fold-away integrated footplate
  • Lightweight, durable magnesium alloy frame
  • Easy to assemble: 5 minutes, no tools required: insert the joystick, tighten the joystick knob and attach the seat cushion and rear storage bag



Dimension:




Technical Specifications:

  • Motor - Two powerful rear drive brushless motors, 24V 150W, combined 300W. Maximum 6 degree climbing ability
  • Frame - Lightweight magnesium alloy
  • Battery - The wheelchair has one battery.  Fully charge the new battery (12Ah, 24V) before its initial use.
    • This brings the battery up to about 90% of its peak performance level; Give the battery another full charge of 4-6 hours and operate your wheelchair again, the batteries will now perform at over 90% of their potential; After four or five charging cycles, the batteries will top off at 100% charge, it lasts for an extended period.
    • Certified safe for air transport under UN 38.3. Please confirm with the airline and airports first, as some airlines may have different guidelines.
    • Battery MSDS
  • Brakes:
    • Intelligent electromagnetic brakes: as soon as the control joystick is not operated, the brakes will be automatically operative to stop the electric wheelchair.
    • Please observe whether the hand brake works or not
    • The brakes can be released using two safety releases on the rear which can be operated from behind by foot, or by hand if the wheelchair occupant reaches back
    • After the brakes have been released, the wheelchair can be pushed from behind or it can be rolled on the rear wheels when folded. If the wheelchair is occupied, it is recommended to use power assistance (joystick control). Pushing the electric wheelchair from behind is possible, however it is a bit harder compared to pushing a non-motorized wheelchair.

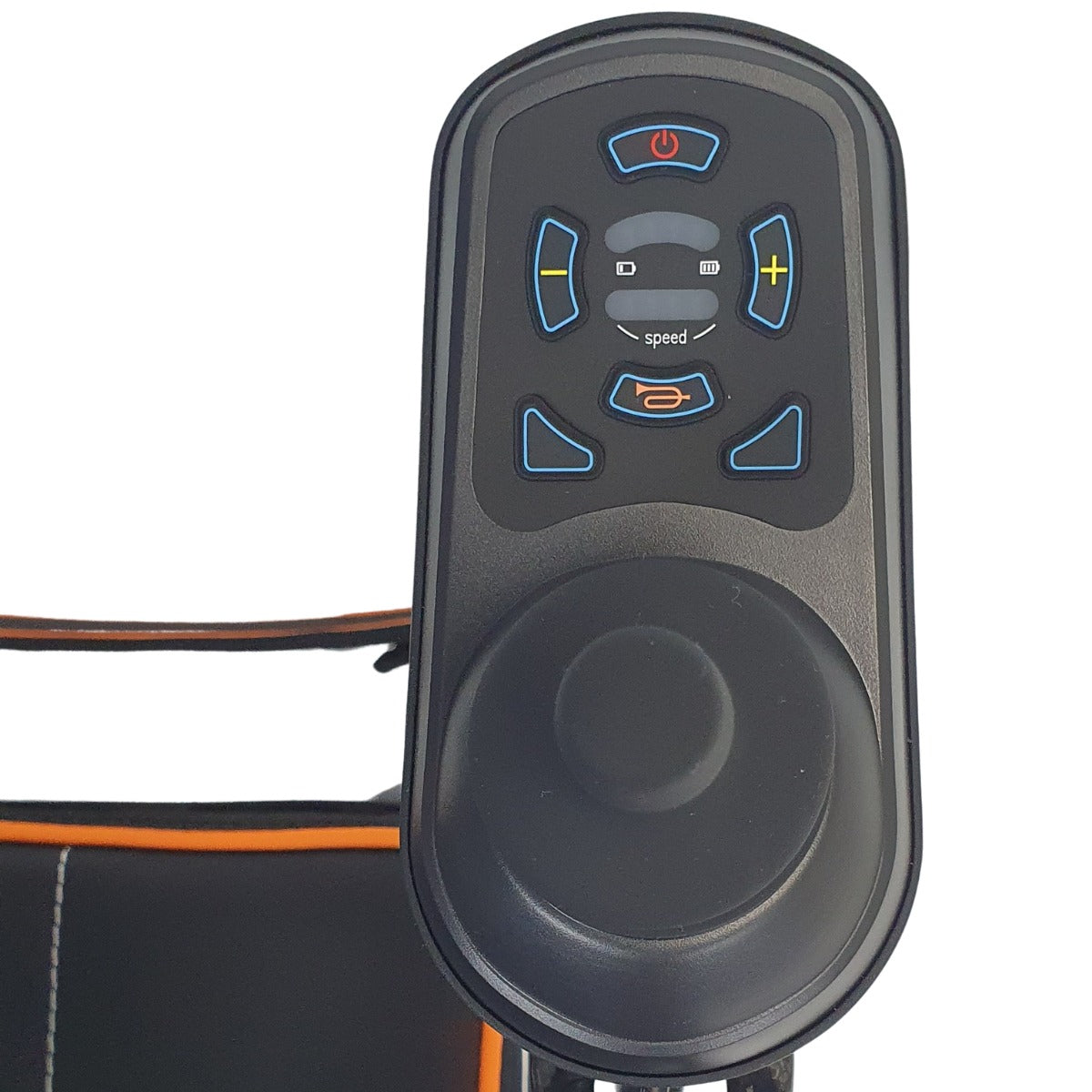

  • Joystick Control -
    • The joystick controller is used to control the chair's movement, including its speed and direction. The joystick control is installed in one armrest, which is connected to the motor and battery.
    • The further you push the joystick from central position, the faster the wheelchair moves. Whenever you release the joystick lever, it will automatically return to center, and brake will be automatically engaged to stop the ewheelchair.
    • Plus(+) and Minus (-) buttton to adjust 5-speed, starting from steady slowest motion to the speed you feel comfortable to ride. Leitner recommends you start at our lowest speed until you can ride ewheelchair skillfully.
    • Reversing sound can be closed by pressing the button of speed-down (-) and horn simultaneously for 3 seconds. If the user needs to turn it on, please press (+) and horn for 3 seconds.
  • Turning Radius - 90cm
  • Dimension:
    • Folded: 79cm high x 36cm wide x 60.5 cm deep
    • Fully assembled: 95cm high x 60.5cm wide x 103cm deep
    • Distance from top of seat cushion to floor: 53cm, without cushion: 48cm
    • The height difference from the top of the seat cushion to the footrest is about 41cm
    • Height of backrest approx. 48cm from the top of the seat cushion to the top of the backrest
    • Distance from footstep to ground: 7cm
    • Padded armrests 34cm long, 4.7cm wide

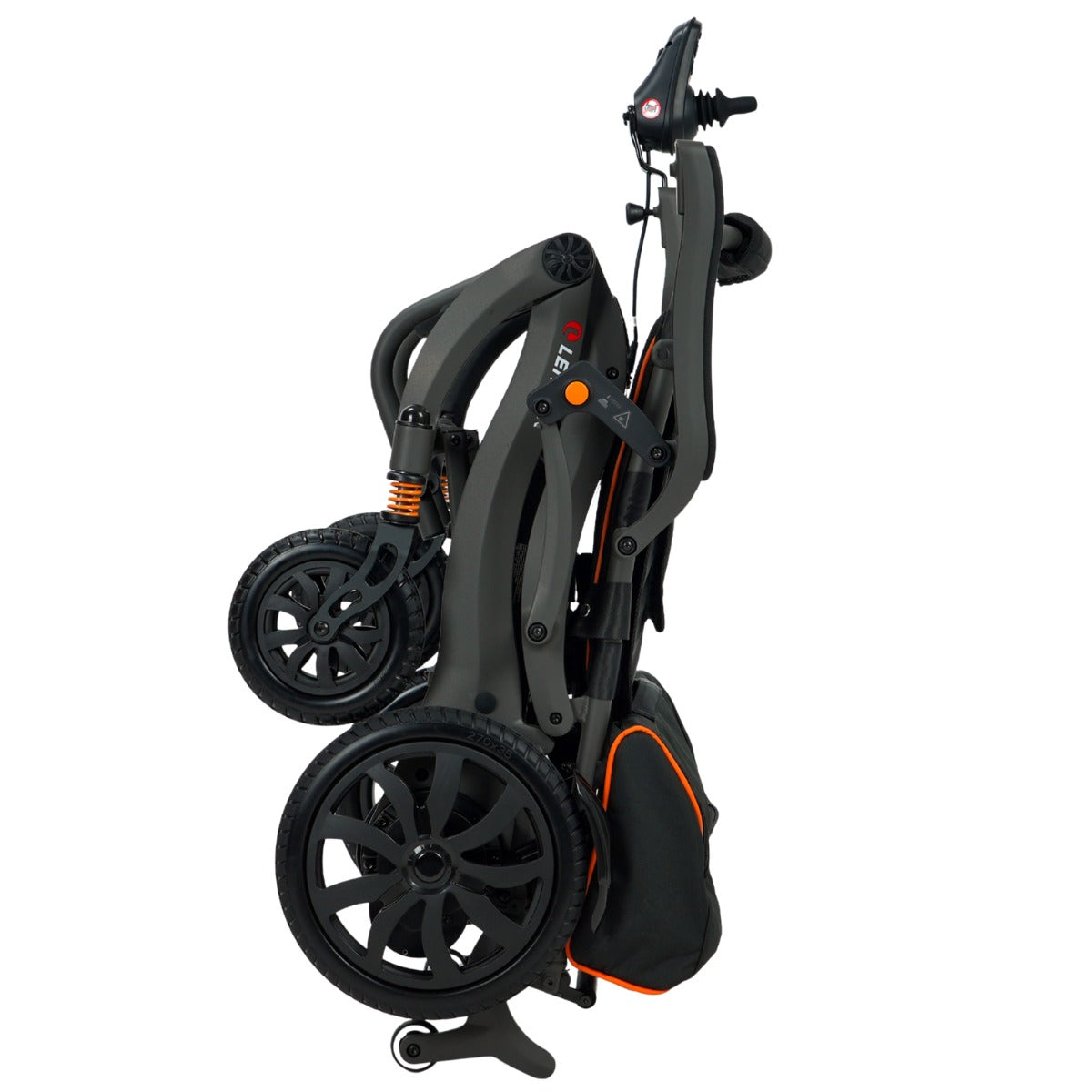

  • Folding Procedure -
    • Put the product on flat ground and turn off the power supply
    • Turn the footrest upward by 90 degrees
    • Lift the folding rod under the backrest while gently folding the backrest forward until the frame collapses into a compact, portable position.
  • Armrest - Padded, flip-up. Safety releases on the outside of both armrests.
  • Travelling Distance on one Charge - Up to 20km depending on hills and weight of occupant
  • Rear Wheels - 10.63-inch rear wheels with an inflate-free tyre, solid PU
  • Front Wheels - 6.5-inch rear wheels with an inflate-free tyre, solid PU
  • Two Anti-Tip Wheels - Two anti-tip wheels designed to prevent tipping in emergency situations. These wheels are non-removable and are suitable only for use on flat surfaces.
  • Storage - Storage bag on the backrest and an extra storage bag at the bottom back of the wheelchair
  • Footrest - Please fold the footrest first then hold the armrest to sit on the wheelchair, do no get off the wheelchair by stepping on the footrest. Flip-up footrest. clearance from ground 9cm, slightly angled upwards.
  • Seat Cushion and Backrest - Ergonomic Seat cushion 40cm deep, 48cm wide, 53cm seat high. The distance between the insides of the armrests is 48cm. Seat cushion is removable. The cover of seat cushion and backrest are removable and washable. Backrest height and width are 53cm and 43cm.
  • Maximum Speed - Walking speed about 6km/h
  • Mudguard - Two rear PVC mudguards
  • Weight - 17kg without battery, 19kg with battery. Battery removal quick and easy.
  • Carry Capacity - Maximum payload of 120 kg. This includes occupant and luggage
  • Charger: This is a smart charger that automatically stops charging when the battery is full. Connect the charger to the port beneath the joystick, then plug it into a power outlet.
    • A full charge takes approximately 4-6 hours if the battery is completely drained.
    • The first charge may take longer as the battery cells balance.
    • A partially discharged battery will charge faster.
    • If charging exceeds 8 hours without reaching full, stop charging and contact customer support.
    • The battery brings 90% of its peak performance level after the first charge.
    • The battery will top off at 100% charge after four or five charging cycles.
