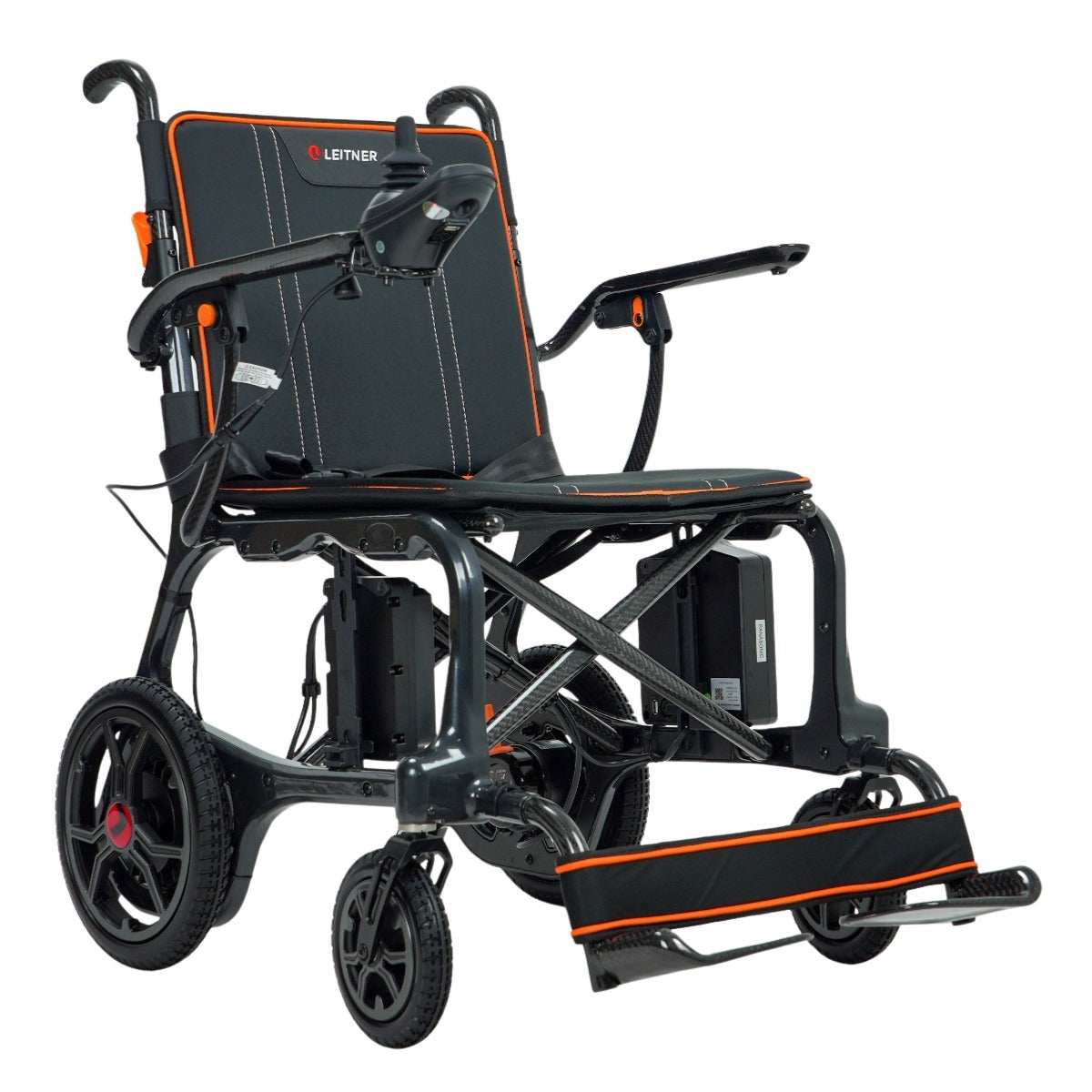

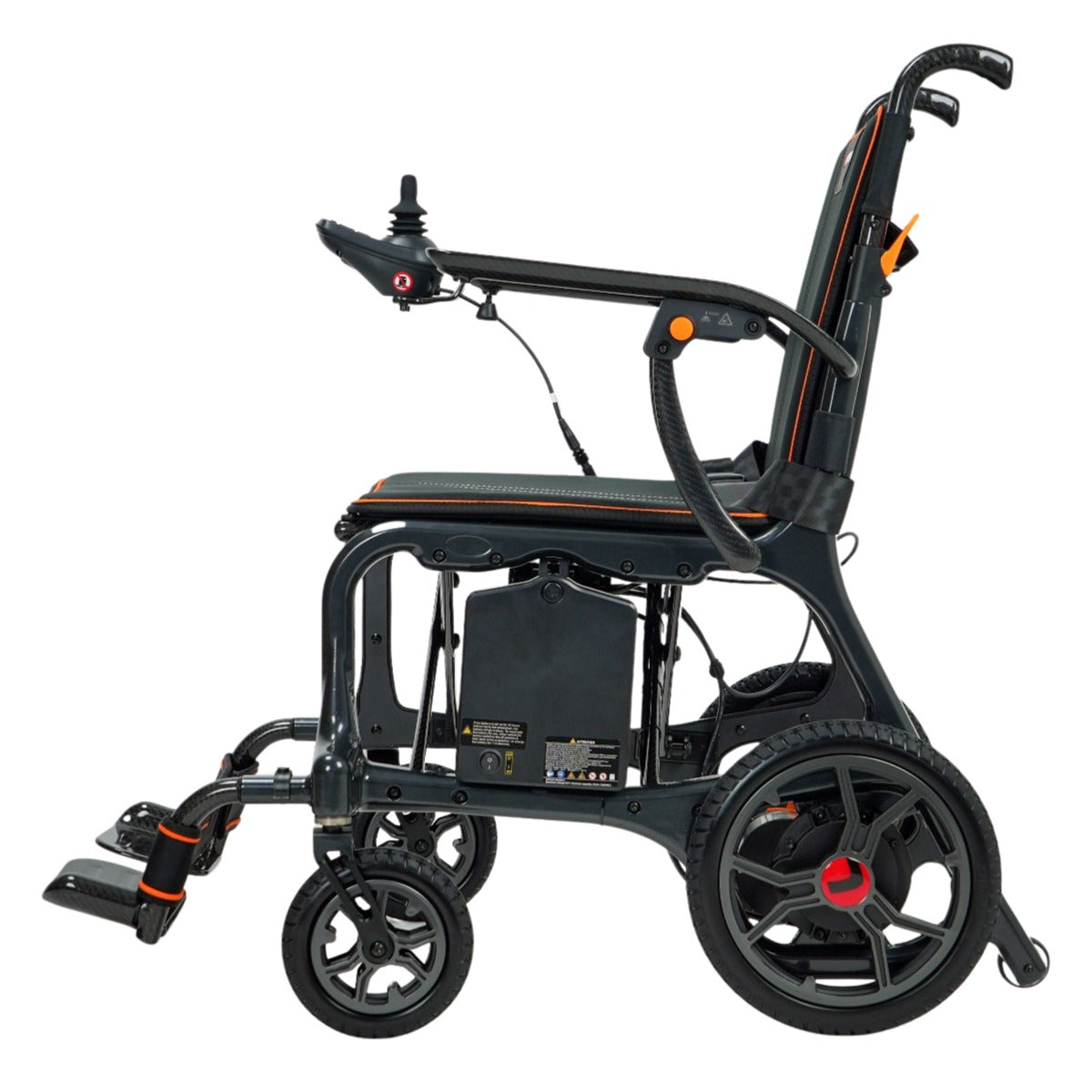

Are you looking for a lightweight, durable electric wheelchair? Leitner Riley electric wheelchair is one of the best options for you! It weighs a remarkable 15kg without battery and features a durable, ultra-light carbon fiber and magnesium alloy frame with advanced engineering that side-folds down in a few seconds. Leitner Riley offers effortless mobility, a far more affordable price, and excellent riding performance.

Leitner Riley Electric Wheelchair Features:

This ultralight electric folding wheelchair empowers your independence—lightly, smoothly, reliably.

  • Side-folded in seconds to fit into most cars (72cm high x 30cm wide x 68 cm deep)
  • Weighs ~15kg without batterry, ~16.5kg with battery
  • One battery can be removed in seconds
  • Suitable for most airlines (please confirm with airline and airports before booking flight)
  • Travels up to 20km, Maximum speed is 6km/h
  • Maximum weight capacity: 136kg
  • Five different speed settings, start from the smooth comfortable lowest speed setting
  • Minimum turning radius < 900mm
  • Braking distance (on a level surface) < 1000mm
  • Both arm rests can be flipped up
  • Two motor is 24V 250W *2
  • Solid PU wheels, 10.63 inch (rear), 6.5 inch (front) with inflate-free tyre
  • Easy to assemble: 5 minutes, no tools required: insert joystick, attach backrest , done!
  • For use on even, paved surfaces
  • fold way integrated footrests
  • lightweight, durable magnesium alloy and carbon fibre frame



Dimension:


Technical Specifications:

  • Motor - Two powerful rear drive brushless motors, 24V 250W, combined 500W. Maximum 9 degree climbing ability
  • Battery - Leitner Hayden has one battery. Leitner Riely has one battery.
    • Fully charge the new battery (10Ah, 24V) before its initial use. This brings the battery up to about 90% of its peak performance level.
    • Give the battery another full charge of 4-6 hours and operate your wheelchair again, the batteries will now perform at over 90% of their potential.
    • After four or five charging cycles, the batteries will top off at 100% charge, it lasts for an extended period.
    • Certified safe for air transport under UN 38.3. Please confirm with the airline and airports first, as some airlines may have different guidelines.
    • Battery MSDS
  • Brakes:
    • Intelligent electromagnetic brakes: as soon as the control joystick is not operated, the brakes will be automatically operative to stop the electric wheelchair.
    • Please observe whether the hand brake works or not
    • The brakes can be released using two safety releases on the rear which can be operated from behind by foot, or by hand if the wheelchair occupant reaches back
    • After the brakes have been released, the wheelchair can be pushed from behind or it can be rolled on the rear wheels when folded. If the wheelchair is occupied, it is recommended to use power assistance (joystick control). Pushing the electric wheelchair from behind is possible, however it is a bit harder compared to pushing a non-motorized wheelchair.

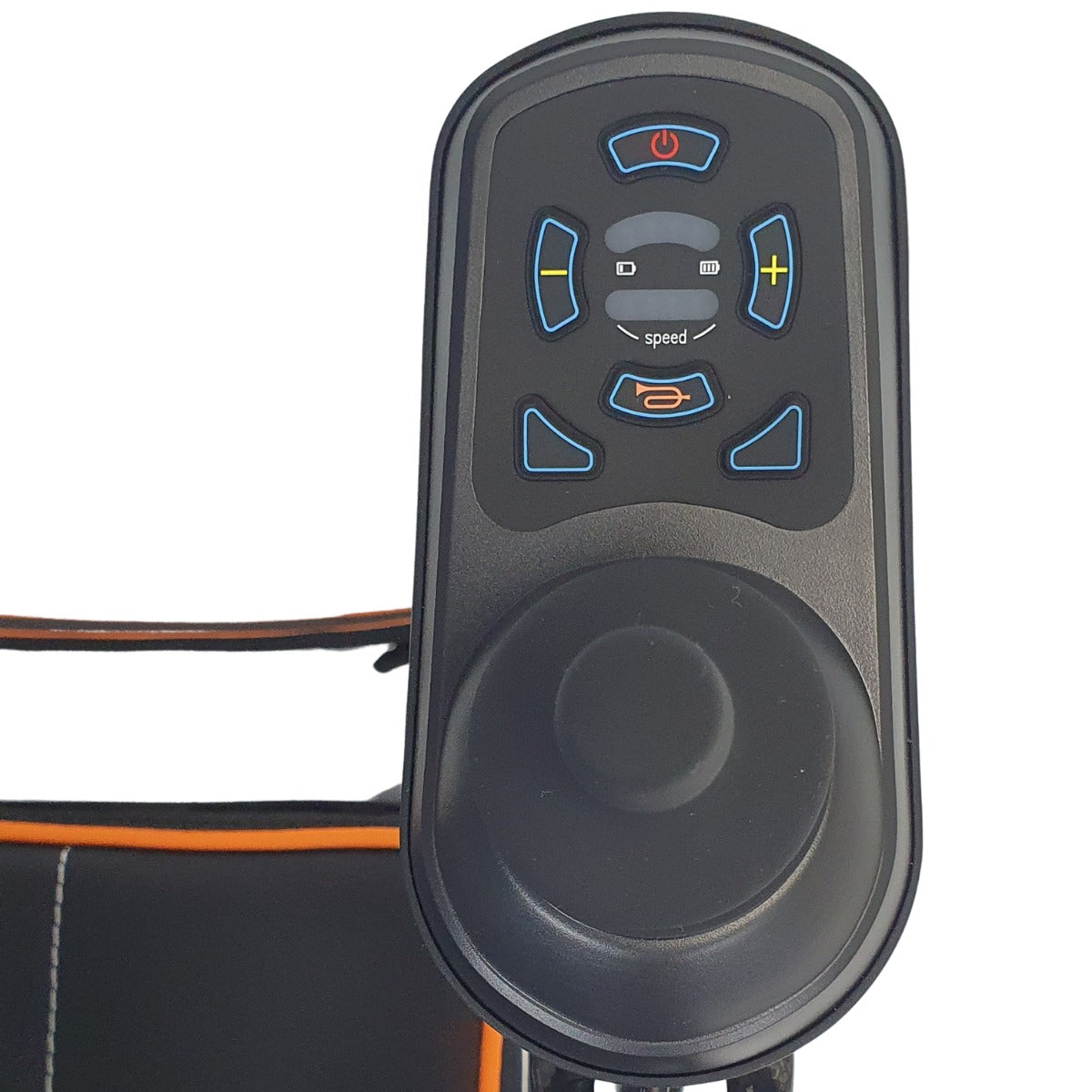

  • Joystick Control -
    • The joystick controller is used to control the chair's movement, including its speed and direction. The joystick control is installed in one armrest, which is connected to the motor and battery.
    • The further you push the joystick from central position, the faster the wheelchair moves. Whenever you release the joystick lever, it will automatically return to center, and brake will be automatically engaged to stop the ewheelchair.
    • Plus(+) and Minus (-) buttton to adjust 5-speed, starting from steady slowest motion to the speed you feel comfortable to ride. Leitner recommends you start at our lowest speed until you can ride ewheelchair skillfully.
    • Reversing sound can be closed by pressing the button of speed-down (-) and horn simultaneously for 3 seconds. If the user needs to turn it on, please press (+) and horn for 3 seconds.
  • Dimension:
      • Folded: 72x30x68cm with joystick.
      • Distance from top of seat cushion to floor 50cm, without cushion 45cm
      • Height difference from top of seat cushion to footrest is about 37cm
      • Height of backrest approx 46cm from top of seat cushion to top of backrest
      • Padded armrests 33cm long, 4.5cm wide

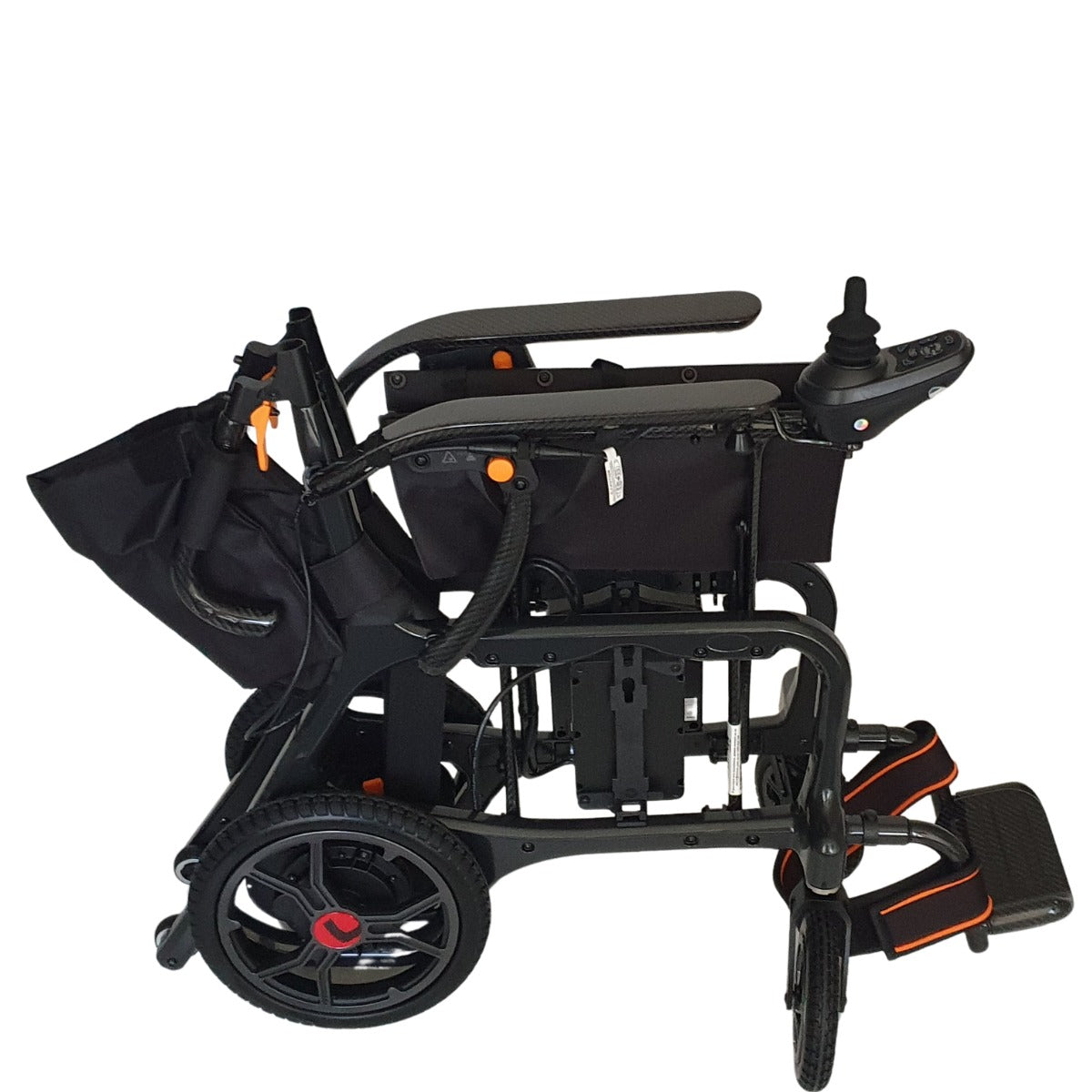

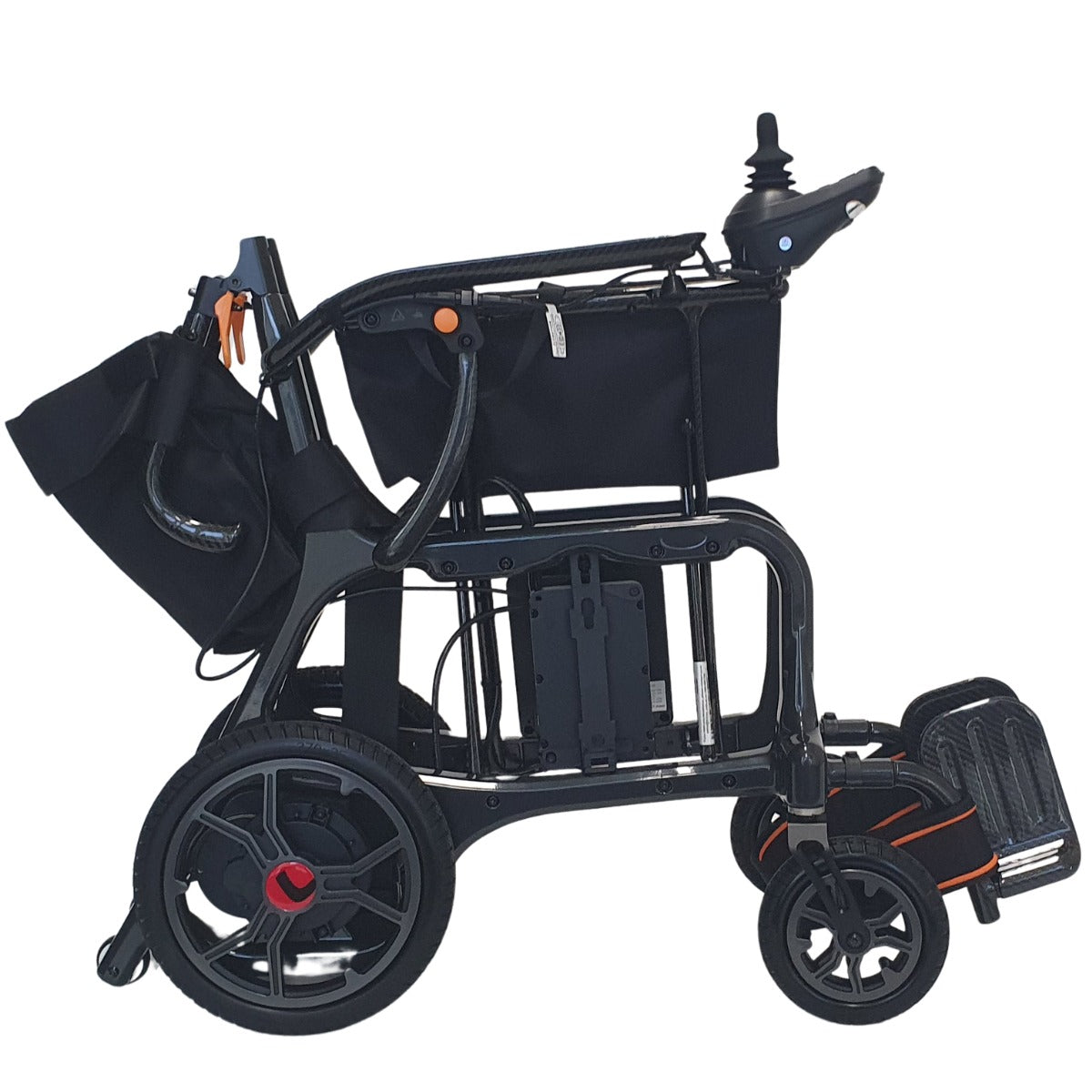

  • Folding Procedure -
    • Put the product on flat ground and turn off the power supply
    • Turn the footrest upward by 90 degrees
    • The frame can be folded by pulling up the seat lever from both sides as well as pulling up the two handle straps under the seat cushion (see our manual)
  • Armrest - Padded, flip-up. Safety releases on the outside of both armrests.
  • Turning Radius - 90cm
  • Travelling Distance on one Charge - up to 20km (onthe flate surface)
  • Rear Wheels - 10.65 inch rear wheels with inflate-free tyre, solid PU
  • Front Wheels - 6.5 inch front wheels with inflate-free tyres, solid PU
  • Two Anti-Tip Wheels - The power wheelchair is equipped with anti-tip wheels, which are used to prevent the wheelchair from tipping over in an emergency. The anti-tip wheels of this wheelchair cannot be removed. The wheels are only suitable for a flat surface.

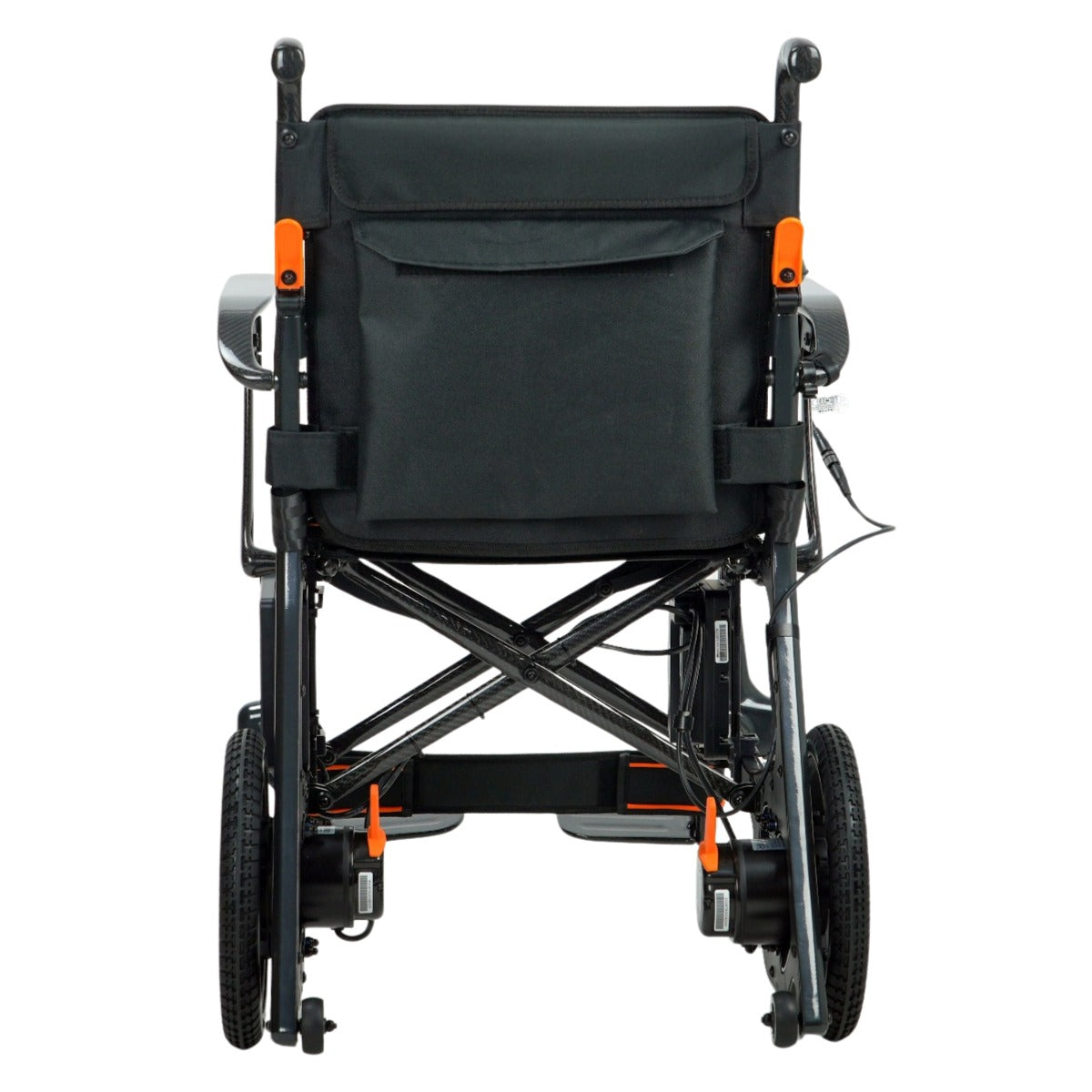

  • Storage - Storage bag on the backrest and an extra storage bag underneath the seat
  • Footrest: Please fold the footrest first, then hold the armrest to sit on the wheelchair. Do not get off the wheelchair by stepping on the footrest. Flip-up footrest. Clearance from ground 15cm.
  • Seat Cushion and Backrest - Ergonomic Seat cushion 40cm deep, 44cm wide, 46cm seat height. Distance between insides of armrests is 48cm. Seat cushion is removable (quick on-off velcro). Cover of seat cushion and backrest are removable and washable.
  • Maximum Speed - Walking speed about 6km/h
  • Weight - 15kg without batteries, 16.5kg with batteries. Battery removal quick and easy.
  • Frame - Lightweight magnesium alloy and carbon fibre on armrest and handle bar
  • Carry Capacity - Maximum payload of 136 kg. This includes occupant and luggage.
  • Charger -
    • This is a smart charger that automatically stops charging when the battery is full. Connect the charger to the port beneath the joystick, then plug it into a power outlet.
    • A full charge takes approximately 4-6 hours if the battery is completely drained.
    • The first charge may take longer as the battery cells balance.
    • A partially discharged battery will charge faster.
    • If charging exceeds 8 hours without reaching full, stop charging and contact customer support.
    • The battery brings 90% of its peak performance level after the first charge.
    • The battery will top off at 100% charge after four or five charging cycles.
