Ronica Trade Firefly V4LHB Enclosed Mobility Scooter

SPEED 10 km/h Street Legal Max Speed 38 km/h

BATTERY 60V 80Ah

WEIGHT CAPACITY 350kg

PRODUCT WEIGHT 337kg

RANGE Up to 38km

NOTE: Delivery to a Business Address with a Forklift ONLY for these states (NT, WA, TAS)

FIREFLY V4LHB – 2nd 2024 upgrade model of the Daisy LEMS.

FIREFLY V4LHB (Looped Handlebar) is an upgrade of the DAISY V2AC and Daisy Firefly V3HB LEMS that have been supplied to many very happy customers in six states of Australia.

FIREFLY V4LHB is the latest iteration and is the most advanced, mobility user friendly, and OT (Occupational Therapist) pleasing LEMS available to date and approved by NDIS.
It is also super safe and comfortable. A luxury enclosed mobility scooter, LEMS, fit for a royal.

FIREFLY V4LHB is the most advanced all weather enclosed cabin mobility scooter available and is only a few hands longer and wider than some other cabin mobility scooters, making this luxury enclosed mobility scooter eminently usable and very comfortable even for the largest person, and it is crammed full of refinement, a luxury enclosed cabin mobility scooter at an affordable price. It is also much safer and much more stable than most other brands of cabin scooters.

Meets all International Standards for motorized mobility devices.

TGA (Therapeutic Goods Australia) ARTG Number: 412430

Description:

FIREFLY V4LHB is an upgrade of the DAISY FIREFLY V3HB and together with the DAISY V2AC have been supplied to many very happy customers in six states of Australia.

FIREFLY V4LHB is the second iteration (upgrade) of 2024. And it is the most advanced, mobility user friendly, and OT (Occupational Therapist) pleasing LEMS available to date, and it is super safe and comfortable. A luxury enclosed mobility scooter, LEMS, fit for a royal.

FIREFLY V4LHB has regenerative braking, electric brake on when stopped, and now with looped handlebar (delta) with wig-wag finger operated throttle, makes this luxury enclosed mobility scooter one the most easily driven, comfortable and safest mobility scooters available.

Firefly V4LHB is eminently usable and very comfortable for even the largest person, and it is crammed full of refinement, a luxury enclosed cabin mobility scooter at an affordable price.

FIREFLY V4LHB has enough power and torque thanks to its’ two-speed differential, to smoothly drive anywhere you want to go, from a crawl on a pedestrian congested footpath, to a comfortable speed in the open.

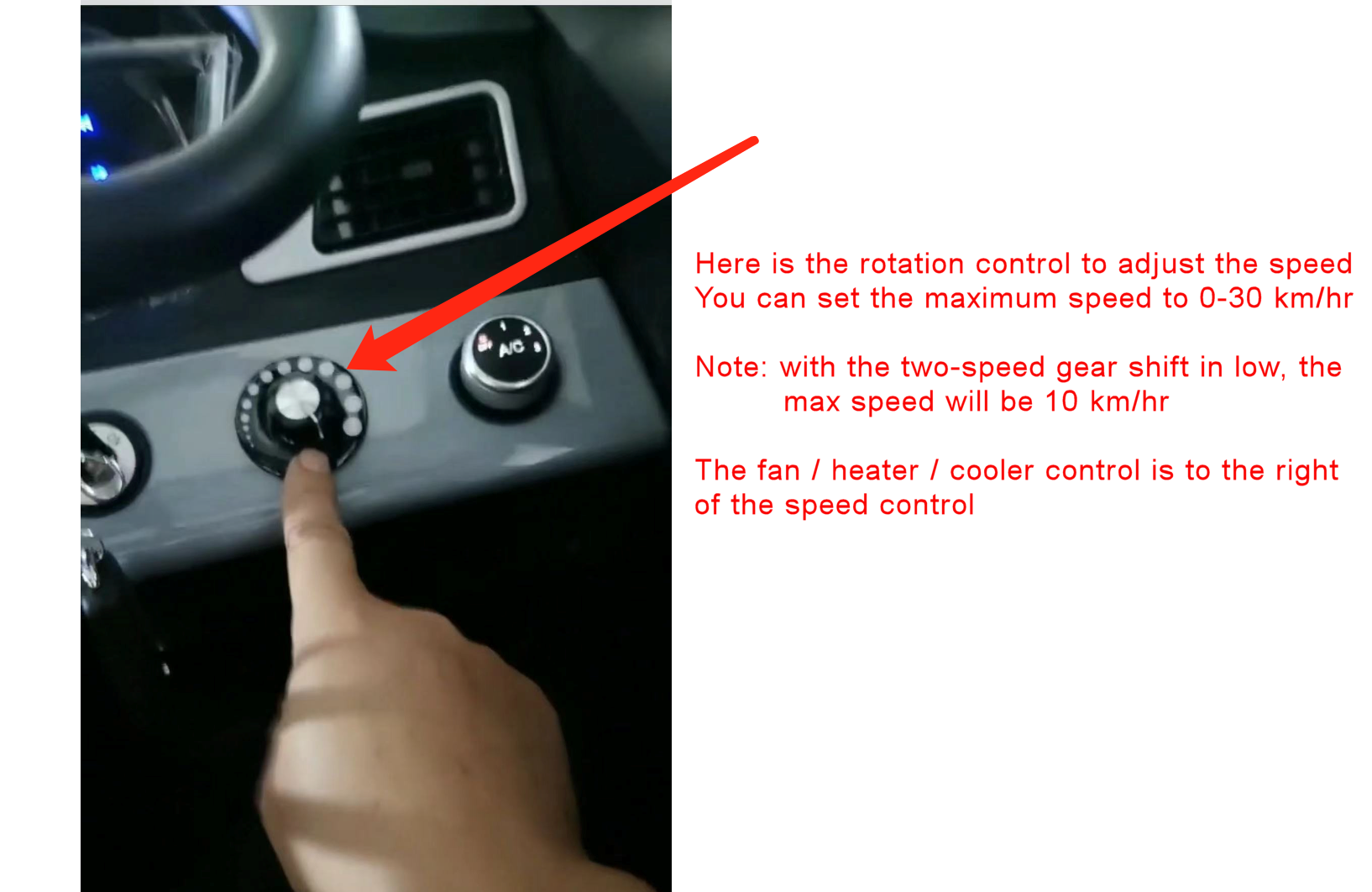

FIREFLY V4LHB has wig-wag finger-controlled throttle, and a rotary maximum speed control.
With the two speeds in the differential, in low gear the speed can be set from 0-10 km/hr.
In high gear, the speed control can be set from 0-30 km/hr.
With the differential gear in low speed, there is ample torque to climb the steepest driveway, or other low speed high torque required conditions.
This also allows you to have excellent speed control, and fast regenerative braking in crowded pedestrian footpath situations.

FIREFLY V4LHB has many other superb features, check them out in the “Features” Section.

FIREFLY V4LHB is an all-weather (from freezing cold to boiling hot) LEMS, luxury Enclosed Mobility Scooter, fit for a royal.

The Firefly is listed in the ARTG Registry of the Therapeutic Goods of Australia.

CCC / ISO Certification
Meets all International Standards and requirements for electric motorised mobility devices.

With Hi / Lo Gear Shift ! Go anywhere thanks to the two-speed differential.

FIREFLY V4LHB 2024 model with “looped handlebar” has been upgraded to have finger operated wig-wag throttle, electronic regenerative braking and foot assistance braking if desired/required. When stopped, an electric brake is engaged and the FIREFLY cannot move, regardless of the slope. It also has a park-brake on the floor in case you have the electric brake disengaged.

Other Standard features are; very effective Heater/Demister and Aircon, 1.5kW Motor, 60V80Ah Lithium Battery, Soft start with delay controller, 350 kg load, 0-10-30 /kph maximum speeds, 20 – 30 km usable range.

Now you can get out of the home in any weather to go shopping, visit your friends and go to other places as required, with the amplest space of any rear seat, and floor area. You can even carry a Travelscoot in the rear seat area.
Just get in and forget the weather !

Features:

• 2024 2nd model with new features, looped handlebar with wig-wag finger-tip controlled throttle, electronic regenerative braking with electric brake on when stopped. It also has foot braking, and a parking brake.
• Two door key lockable
• Electric windows
• Looped handle bar steering
• Finger tip operated wig-wag throttle
• Maximum range of up to 38 km *
• Usable Range 20 -30 km maximum *
• Max speeds variable 0-10-30 kph
• Hi/Low Gear Shift ! Climb any driveway or hill / mix it with pedestrians
• Damping Suspension Adjustable and very effective front and rear shock absorbers
• Electronic Regenerative braking
• Electric Brake on when stopped will hold on any slope
• Foot Braking Hydraulic disk brakes on all four wheels
• Parking Brake on the floor on rear wheels, use if the electric brake is disengaged
• AC Motor Heavy duty, Brushless no maintenance
• Controller Heavy duty, soft start with delay (very nice)
• Lithium Battery Ternary, biggest capacity
• Weight Capacity 350kg
• Driver Weight Capacity 250 kg
• Certification CCC / ISO
• TGA – ARTG number
• NDIS Approved
• OT Approved

* Depends on user mass, terrain and battery type / size and condition, based on 80 kg driver on straight and level smooth hard ground, all things in good condition, and a steady speed.

Equipment:

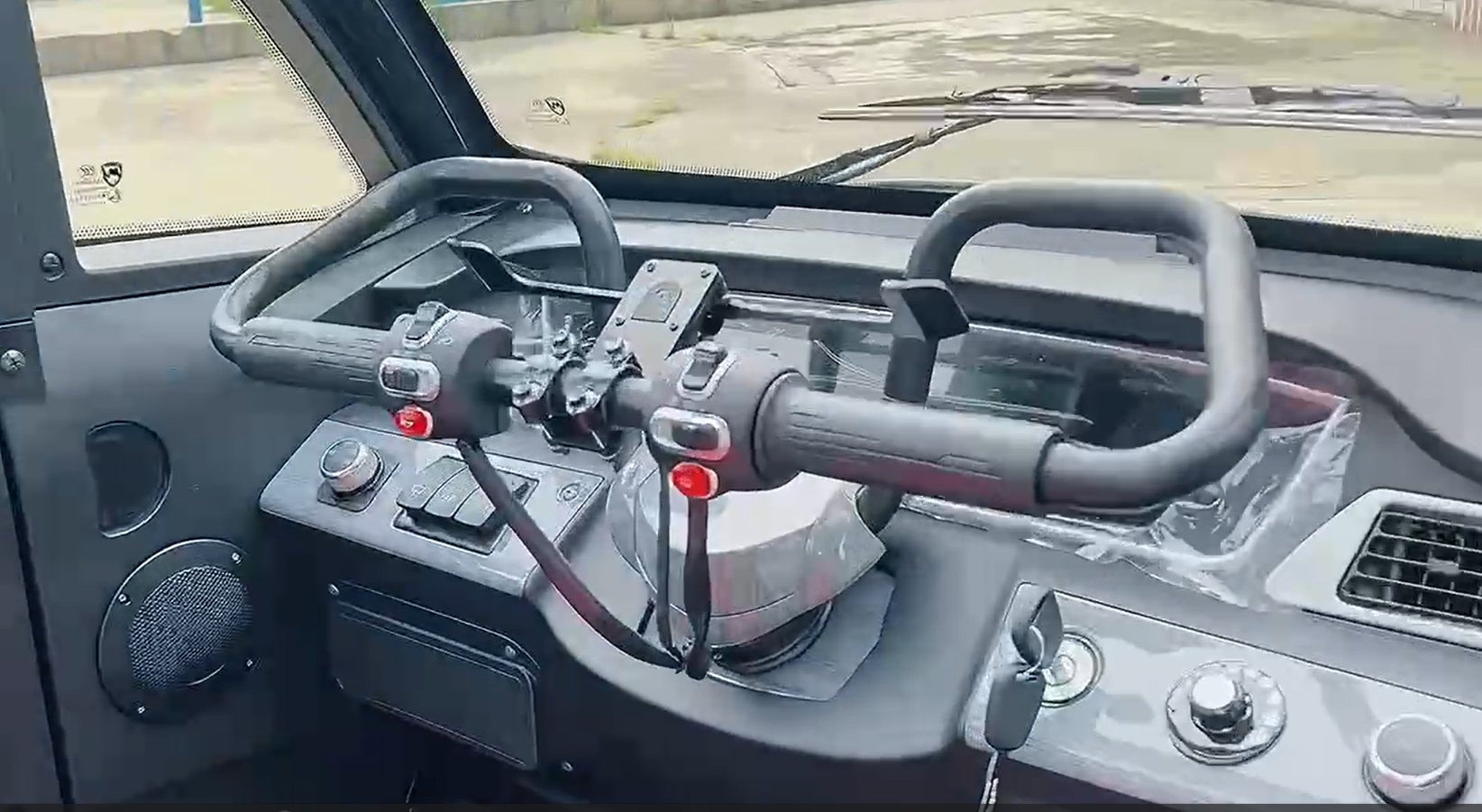

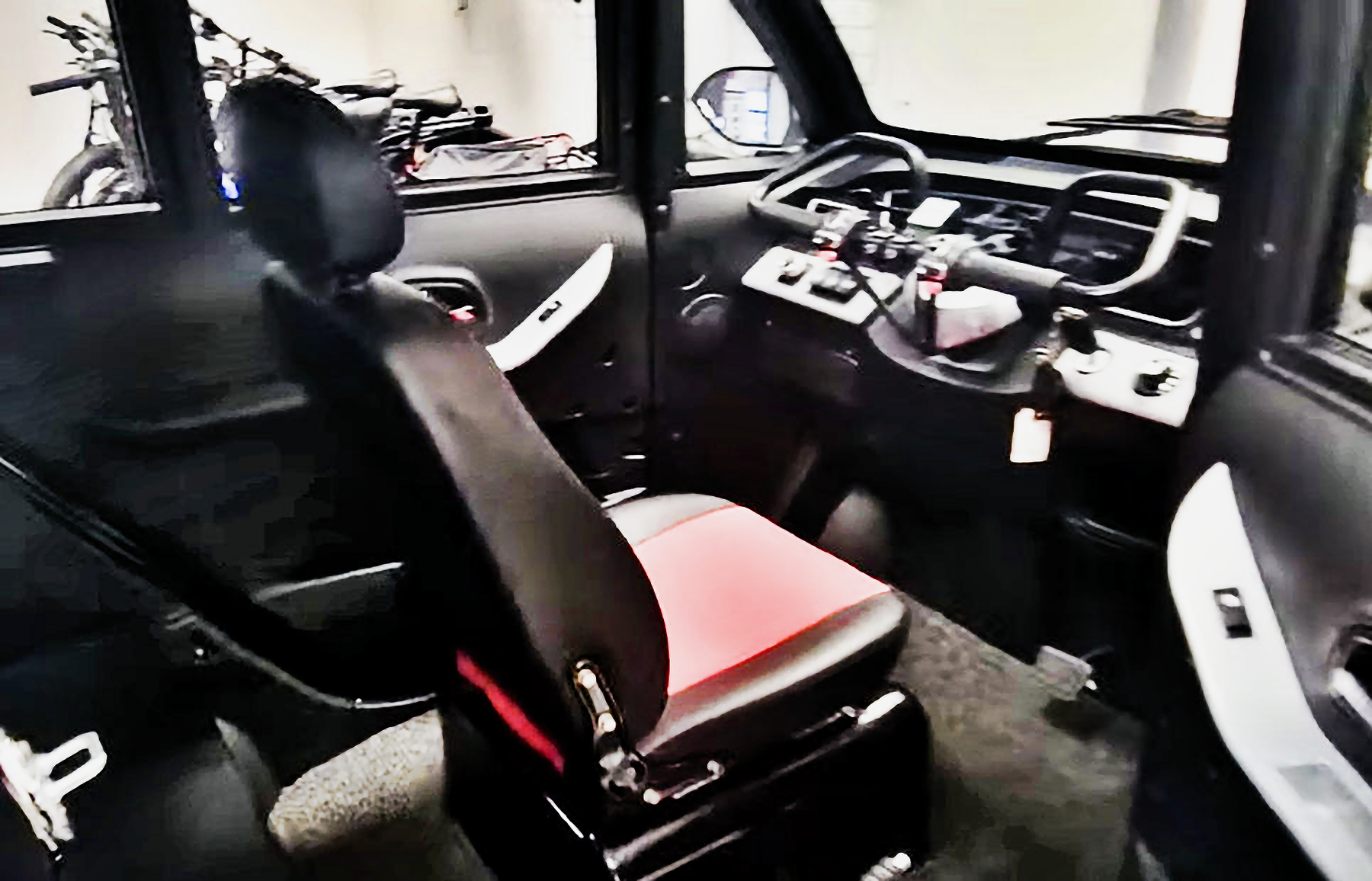

• Loop Handlebar steering with wig-wag finger control
• Windscreen wiper with washer
• Key lock door
• Electric windows
• LCD electronic instrument dashboard
• Blue tooth, USB, auxiliary
• MP3 Media and Radio with multi display function control
• Battery capacity gauge, with voltage read-out
• Speed display large easily seen digital
• Odometer
• Speaker
• Rear vision mirrors

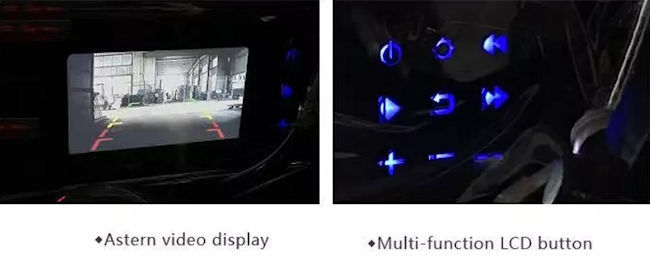

• Rear view camera
• Key start / stop

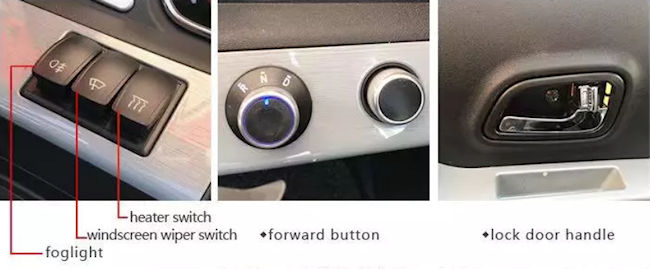

• Heater / Demister
• Air Conditioner

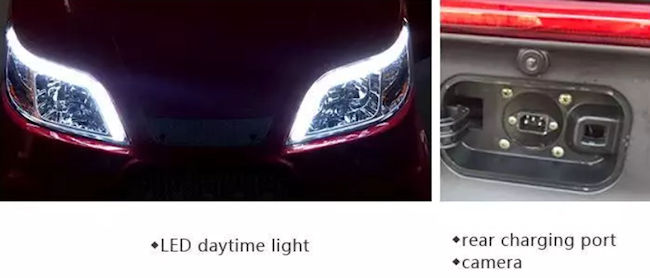

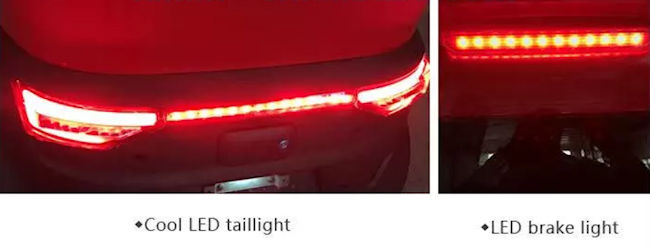

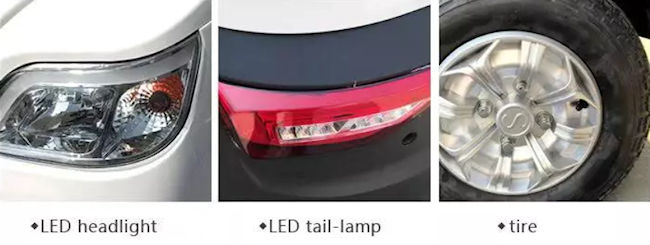

• LED lights powerful and elegant, front and rear
• High / low beam halogen head lights
• Fog light
• Indicators
• Rear plate light
• Soft start controller
• Variable electronic maximum speed
• Hi / Low 2-speed differential gear shift
• Horn
• Two doors with locking
• Large skylight opening
• Rear window opening
• Good hydraulic shock absorbing suspension
• Large wheels with pneumatic tyres for a good ride
• Hydraulic disk brakes four wheels – foot operated

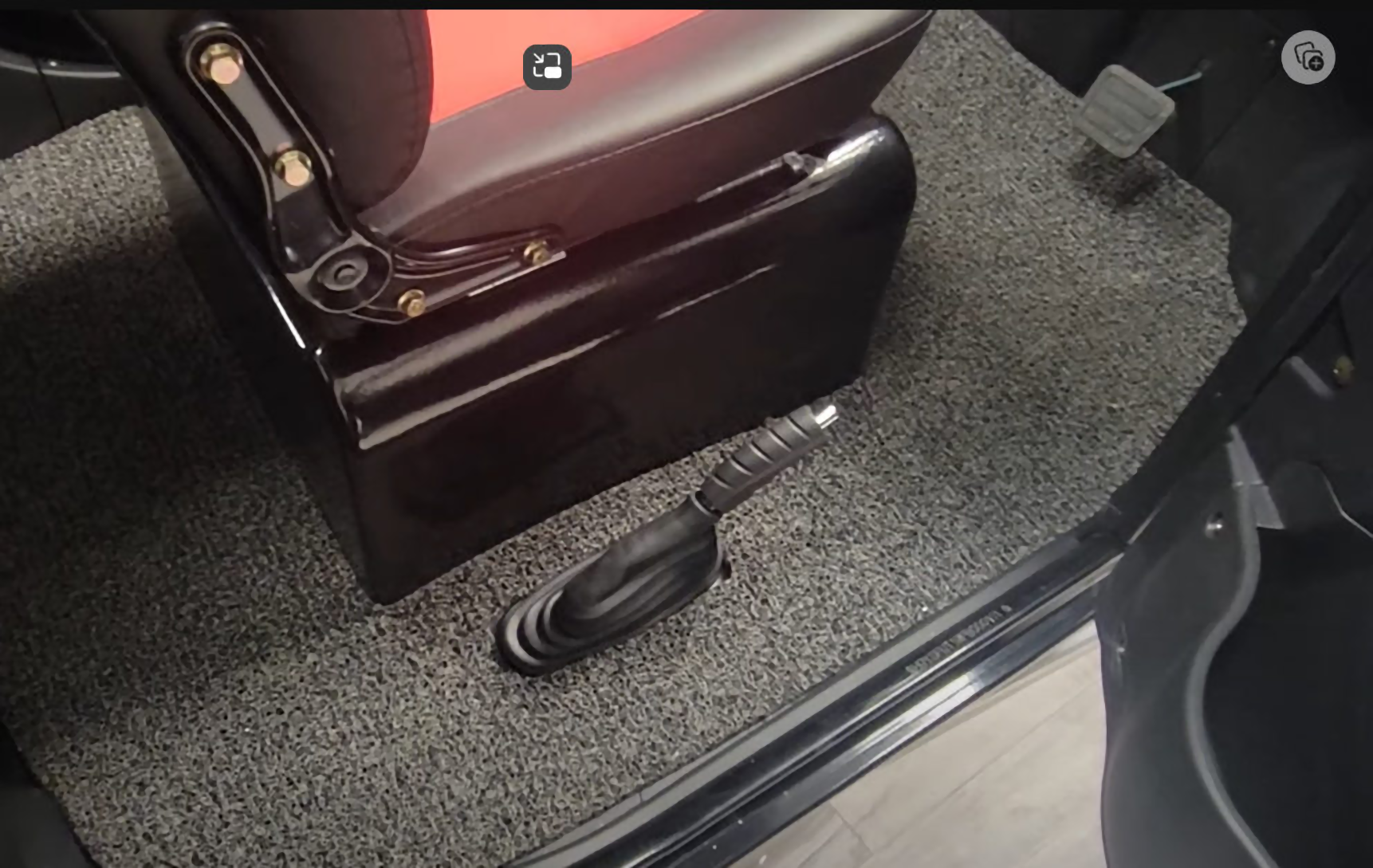

• Parking brake on floor on rear wheels
• Electric brake on full stop on motor and rear wheels
  NOTE: Electric Brake must be engaged, lever on right side of motor.
  Disengage to move Firefly LHB manually. It can be driven with electric braking disengaged, but the electric brake will not work when LEMS is stopped.
• Sliding / tilting front captain’s seat – comfortable
• Seatbelts 3pt front, 2 pt rear (must be worn while on a road, if footpath is not available)
• Large space in rear can be used for shopping, goods, or even other mobility aids such as a Travelscoot or a walker / rollator
  • If you intend to use the rear area for a passenger, please check with your state road regulator authority and obtain permission, if required)

Specifications:

• Manufacturer: Xili Vehicle Co
• Exporter: Jiangsu Ruipaiying Import and Export Co Ltd
• Importer: Ronica Trade Pty Ltd
• Distributors: Mobility Scooters for Hire sale Service / Dealers nationwide / New dealers welcomed
• Model Number: HMY
• Model: Daisy
• Model Version: Firefly V4LHB
• Certification: CCC / ISO 9001
• Registration: TGA / ARTG number
• Approvals: NDIS and OT
• Available Colours: 12 Colour Options

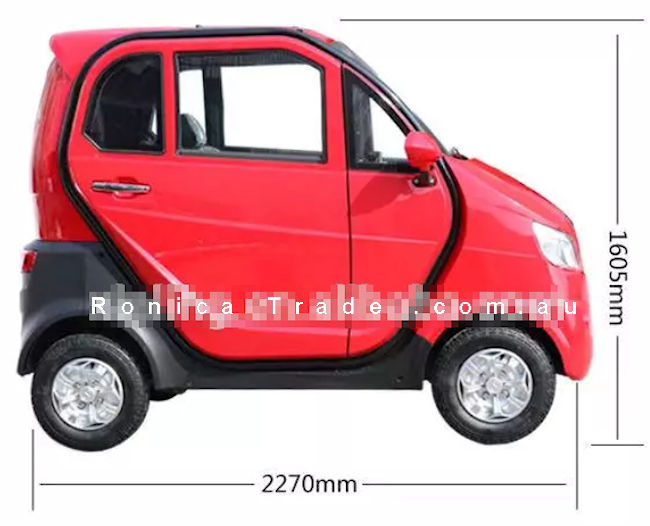

• Dimensions: 227 x 110 x 160 cm (L x W x H)
• Weight (total): 337 kg
• Weight without batteries: 300 kg
• Weight capacity: 350 kg
• Driver capacity: 250 kg
• Wheelbase: 154 cm
• Span Rear Wheels: 98 cm
• Body Type: Unitary construction
• Maximum speeds variable: 0-10-30 kph
  Do not exceed 10 kph on paths with pedestrians (in low differential gear 10km/hr is the maximum)
• Maximum range *: 30 km usable.
  If you are interested in bigger range, we have our Daisy V2AC. Our Daisy V2AC does not come with electric brake, only handbrakes, however the maximum travel range is up to 68km*
• Maximum slope *: 23° 44%
• Ground Clearance: 15 cm
• Heater: Yes
• Aircon: Yes
• Motor: 60V 1500W brushless AC
• Battery: 60V 80Ah Lithium Ternary
• Battery charger: 71.4V 10A
• Controller: Electronic delayed soft start
• Drive Type: Rear automatic control with two speeds differential
• Braking: Electronic regenerative braking with electric brake on when stopped and hydraulic disk brakes on all four wheels by foot
• Parking Brake: Hand on floor on rear wheels; Electric brake on motor and rear wheels
• Wheels: 400-10
• Suspension: Front and Rear: Integral hydraulic damping
• Tyres: 17×4″ 400-10 | Pressure: Front: 220kPa, Rear: 250kPa (32/35 PSI)
• Shipping details (Net by Transporter or Pallet): 350 kg 226x125x170 cm 4.8 cubic meters
• * Varies with user weight, terrain type, driving style, battery charge, battery condition, temperature, and tyre / wheel type and condition. Information taken from manufacturers specifications. NOTE: Do not go below 61V when resting.

Iterations:
Daisy V1 2021
Daisy V2 2022 Replaced lead acid battery with Lithium battery, added air conditioning
Daisy V2 2023 added 2-speed diff
Daisy V2AC 2023 added Soft Start
Firefly HB 2024 Electronic regenerative braking, electric brake, foot brake, LiFEPO4 battery
Firefly LHB 2024/2 Looped handlebar with finger operated wig-wag throttle, Li Ternary battery

Motor & Battery Combination:

FIREFLY V4LHB has been upgraded to have a Lithium Ternary Battery giving great performance.
NOTE; the range is reduced with the regenerative braking motor.

FIREFLY V4LHB has a 60V AC 1.5 kW Brushless Motor, powerful and efficient.

FIREFLY V4LHB has an upgrade 60V 80Ah Lithium Ternary battery that should be charged as close to and before it is driven 30 km. ZERO the odometer at each charge and drive up to 30 km, or when the resting voltage is 61V. Do not drive beyond this voltage, as this is at 20% SOC, and the minimum the battery should be subjected to.
This battery can also withstand extremes in temperature without damage.

ALWAYS FULLY CHARGE YOUR FIREFLY BATTERY BEFORE USING FROM NEW. RESET ODOMETER TO ZERO.

In practice depending on driving style, terrain, load, speed etc, you will get around 30 km distance maximum. With the heater or air conditioner going, you will get less distance. Also, remember Lithium batteries have a VERY short end phase in their power supply, so run out very quickly.
DO NOT go below 61V while battery is resting.

For BEST LIFE, using this Li Ternary battery, it is best to not go below 61V when resting and to recharge as few times as possible.

DO NOT RELY SOLEY ON THE BATTERY GUAGE, USE THE ODOMETER and VOLT METER.
The battery must never go below 20% SOC as you will shorten the battery life.
That is at the 61V resting value or around 30 km range.

When charged, disconnect the charger and use your Daisy Firefly V4LHB as soon as possible, the next day is ok, to use some of the top charge in the battery, as the Lithium Ternary battery prefers not to be left or stored fully charged.
When in storage, the Lithium battery should be charged to approximately 63-65 V, half full, or half empty, and make sure the Daisy’s Power / Overload switch is OFF, so there is no chance of accidentally drawing current from the stored battery.
Check the battery voltage every month and top up to 65V if required.

If the battery goes below 49 volts, the BMS (battery management system) will switch off to protect the battery, and the battery will have to be returned to Ronica Trade to try and remedy the situation. There is a 250.00 fee (if successful) to attempt the resurrection, and no guarantees.

Please note, this information is as per this particular type of Lithium battery and is not what you may know or be told about other types of Lithium batteries.

The above data was calculated using a Victron Shunt Energy Analyzer.
